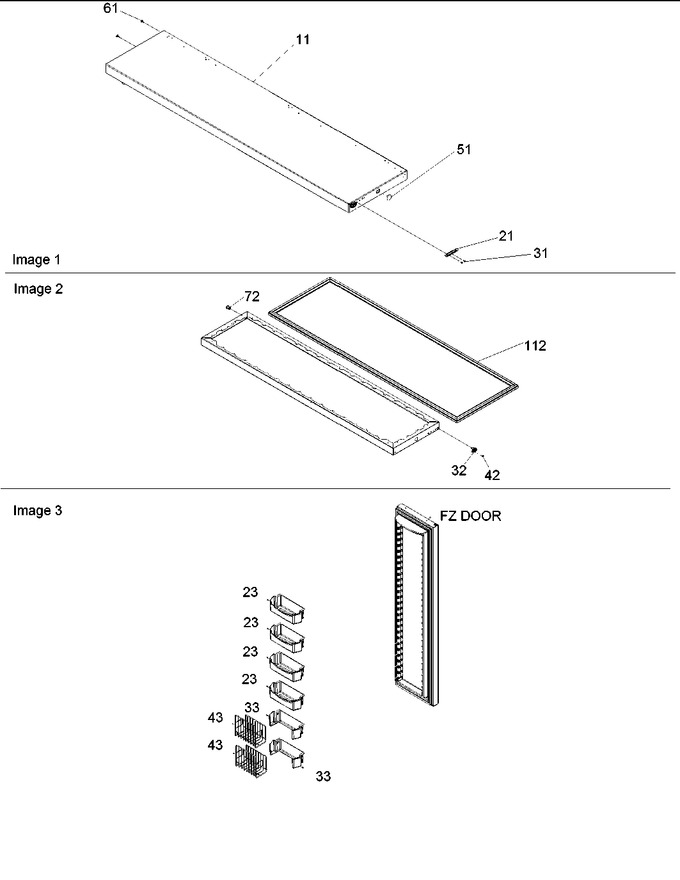

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12310103WQ		Assy,fr Dr Foam(white)		Appelez-nous	-
21	C8972409		Stop, Door (wht)		Appelez-nous	-
23	12311908		Bucket, Frzr Door		Appelez-nous	-
31	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
32	R0181181		Closure, Door (wht)   (Replaces: 12113202)			Immediately	$ 7.55
33	12498801		Frame,tilt Dr Shelf		Appelez-nous	-
42	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.96
43	12498901		Basket, Tilt Out		Appelez-nous	-
51	A3080001		Plug, Button (blk)		Appelez-nous	-
61	M0311605		Plug, Button (wht)		Appelez-nous	-
72	10961001		Bushing, Door (wht)		Appelez-nous	-
112	R9800047		Assy,fz Dr Gasket(white)		Appelez-nous	-
NI	12310203		Retainer, Frz Bucket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
