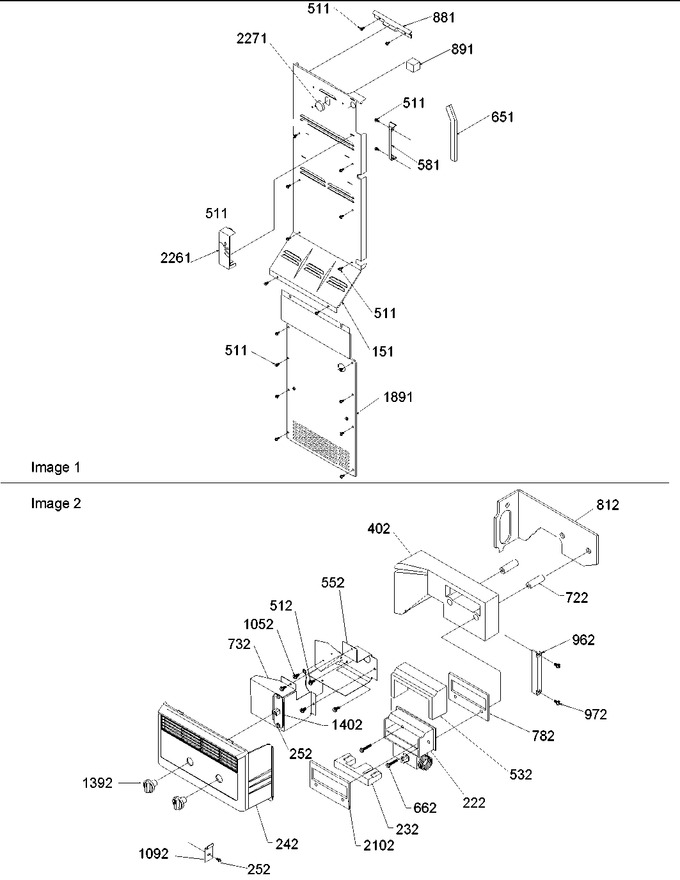

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
151	12295320		Back, Inner Frz (pntd)		Appelez-nous	-
222	R9900109		Control, Damper				$ 120.46
232	C8902601		Insert, Control		Appelez-nous	-
242	10862713		Cover, Control		Appelez-nous	-
252	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
402	10176606Q		Air Duct, Waxed		Appelez-nous	-
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
512	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
532	D7788201		Insulation		Appelez-nous	-
552	D7822406		Box, Control Btm		Appelez-nous	-
581	D7838302		Cover, Supply Air		Appelez-nous	-
651	B8386602		Gasket		Appelez-nous	-
662	M0216539		Screw		Appelez-nous	-
722	A3044208		Spacer Damper		Appelez-nous	-
732	D7868606		Box, Control Top		Appelez-nous	-
782	B8345401		Gasket, Damper		Appelez-nous	-
812	10177901		Gasket, Air Duct		Appelez-nous	-
881	C8976201		Clamp		Appelez-nous	-
891	C8976102		Gasket, Air Block		Appelez-nous	-
962	C8977301		Clamp		Appelez-nous	-
972	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 8.55
1052	WP489399		Screw   (Replaces: M0232903)				$ 7.30
1092	12414701		Brkt, Cont Cover		Appelez-nous	-
1392	12500101		Kit, Range Knob-22,31,61 (6)		Appelez-nous	-
1402	R0161092		Assy, Control-fz				$ 226.99
1891	10655902		Evap Cover- E Ct		Appelez-nous	-
2102	10383201		Gasket, Damper		Appelez-nous	-
2261	D7827402		Cover, Fill Tube		Appelez-nous	-
2271	B5636301		Cap		Appelez-nous	-
