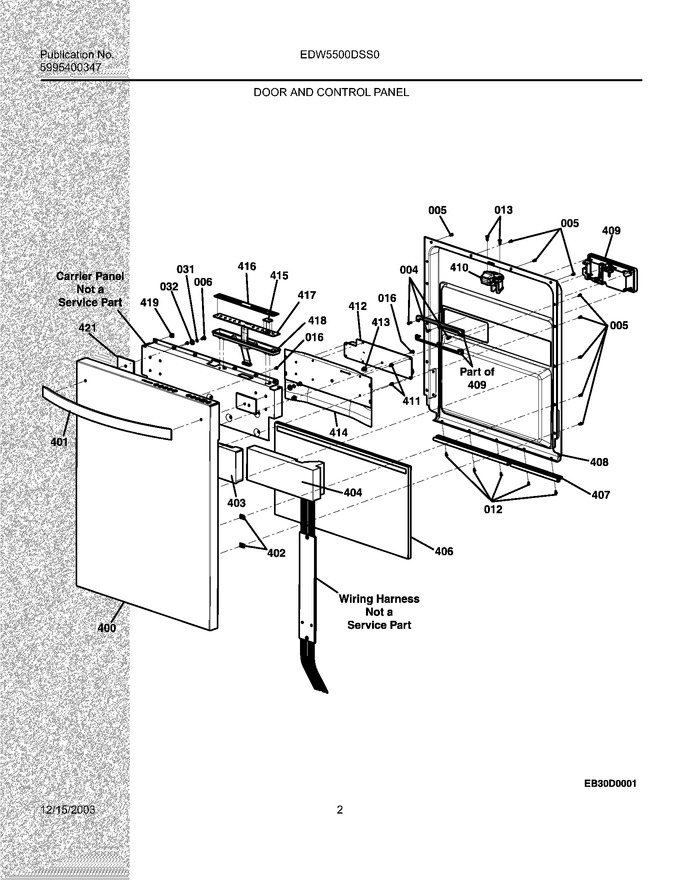

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
004	5304434830		Screw,pan Hd Hi/lo ,no.7-19 X 1/2		Appelez-nous	-
005	5304434831		Screw,c/sunk No.6 Hd ,no.8 X 11 Ab		Appelez-nous	-
006	5304434832		Screw,taptite ,m5 X 6 Truss Hd ,zc		Appelez-nous	-
012	5304434837		Screw,csk Ab ,6 X 3/8 Ph ,s/s				$ 5.63
013	5304434838		Screw,inox ,5.2 X 14		Appelez-nous	-
016	5304434840		Screw,flange Hd ,no.7 X 12 Ph		Appelez-nous	-
031	5304434842		Washer,int.s/proof ,3/16``		Appelez-nous	-
032	5304434843		Washer,flat ,15 X 5.5 X 1.2		Appelez-nous	-
400	5304434929		Panel,door ,top Integrated		Appelez-nous	-
401	5304434930		Handle,door		Appelez-nous	-
402	5304434931		Nut,u Type ,no.8 Ab		Appelez-nous	-
403	5304434932		Brace,door Stiffening ,lh		Appelez-nous	-
404	5304434933		Brace,door Stiffening ,rh				$ 31.92
406	5304434934		Insulation,door ,lower		Appelez-nous	-
407	5304434935		Seal,door ,bottom		Appelez-nous	-
408	5304434936		Panel,door ,inner ,complete				$ 235.70
409	5304434937		Dispenser,w/reed Switch				$ 219.82
410	5304434938		Lock,door Unit				$ 159.92
411	5304434939		Support,main Controller		Appelez-nous	-
412	5304434940		Board,main Controller				$ 351.49
413	5304434941		Grommet,4.8mm		Appelez-nous	-
414	5304434942		Shield,main Controller		Appelez-nous	-
415	5304434943		Lens,top Display				$ 53.45
416	5304434944		Panel,buttons ,elastomer				$ 104.21
417	5304434945		Board,top Switch				$ 442.63
418	5304434946		Housing,switch Button				$ 78.44
419	5304434947		Grommet,carrier ,integrated		Appelez-nous	-
421	5304434949		Plate,backing		Appelez-nous	-
