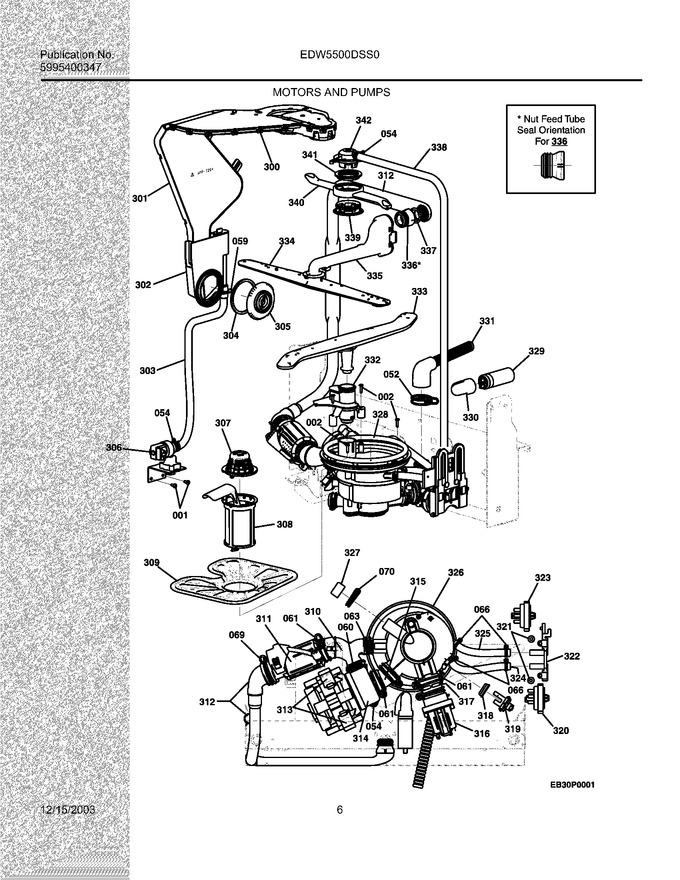

07 - Motors And Pumps


09 - Wrapper And Trim


11 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	5304434827		Screw,extrudetite ,m4 X 10 Pnhd Ph		Appelez-nous	-
002	5304434828		Screw,inox ,4 X 16 Tt		Appelez-nous	-
052	5304434844		Clamp,drain Hose		Appelez-nous	-
054	5304434845		Clamp,hose ,15.5mm ,black		Appelez-nous	-
059	5304434846		Clamp,hose ,17.7mm		Appelez-nous	-
060	5304434847		Clamp,hose ,38mm		Appelez-nous	-
061	5304434848		Clamp,hose ,44mm		Appelez-nous	-
063	5304434849		Clamp,hose ,32mm		Appelez-nous	-
066	5304434850		Clamp,hose ,pressure Switch		Appelez-nous	-
069	5304434851		Clamp,hose ,47mm ,upper Spray Arm				$ 21.53
070	5304434852		Clamp,hose ,28mm		Appelez-nous	-
300	5304434886		Fan,dry Unit ,120v/60hz		Appelez-nous	-
301	5304434887		Duct,condenser ,complete				$ 92.35
302	5304434888		Inlet,syphon Break		Appelez-nous	-
303	5304434889		Hose,syphon Break				$ 33.39
304	5304434890		Gasket,air Vent		Appelez-nous	-
305	5304434891		Vent,air		Appelez-nous	-
306	5304434892		Valve,water Inlet ,120v/60hz				$ 188.11
307	5304434893		Cover,filter ,drain Cup				$ 40.22
308	5304434894		Filter,micro Mesh		Appelez-nous	-
309	5304434895		Filter,primary ,stainless		Appelez-nous	-
310	5304434896		Hose,pump/sump				$ 85.68
311	5304434897		Element,in-line ,1200w ,120v		Appelez-nous	-
312	5304434898		Tube Assembly,heater ,upper Spray Arm ,complete				$ 248.75
313	5304434899		Bracket,motor Mounting		Appelez-nous	-
314	5304434900		Pump Motor,recirculating ,120v/60hz				$ 262.92
315	5304434901		Hose,recirc. Pump				$ 27.89
316	5304434902		Pump Motor,drain ,120v/60hz		Appelez-nous	-
317	5304434903		Hose,sump/drain		Appelez-nous	-
318	5304434904		Seal,ntc Switch				$ 11.71
319	5304434905		Switch,ntc W/turbidity ,10ko				$ 191.89
320	5304434906		Switch,pressure ,ul P2 ,safety				$ 259.98
321	5304434907		Seal,pressure Switch ,port		Appelez-nous	-
322	5304434908		Support,pressure Swtchs		Appelez-nous	-
323	5304434909		Switch,pressure ,ul ,fill Level				$ 111.56
324	5304434910		Tube,pressure Switch ,safety		Appelez-nous	-
325	5304434911		Tube,pressure Switch ,p1 Level		Appelez-nous	-
326	5304434912		Housing,sump		Appelez-nous	-
327	5304434913		Plug,water Softener		Appelez-nous	-
328	5304434914		Seal,sump		Appelez-nous	-
329	5304434915		Capacitor,10uf Ul				$ 102.53
330	5304434916		Cap,capacitor		Appelez-nous	-
331	5304434917		Hose,drain ,1/2``				$ 104.10
332	5304434918		Support,spray Arm ,lower		Appelez-nous	-
333	5304434919		Spray Arm,lower Assy.				$ 63.37
334	5304434920		Spray Arm,upper Assy.				$ 85.73
335	5304434921		Tube,spray Arm ,upper				$ 165.06
336	5304434922		Nut,feed Tube ,complete				$ 36.86
337	5304434923		Seal,o-ring				$ 57.07
338	5304434924		Hose,upper Spray Arm ,to Pump				$ 142.07
339	5304434925		Nutlock,spray Arm ,3rd Level		Appelez-nous	-
340	5304434926		Spray Arm,3rd Level		Appelez-nous	-
341	5304434927		Seal,adaptor				$ 47.83
342	5304434928		Adaptor,spray Arm ,3rd Level		Appelez-nous	-
