SELECT A DIAGRAM

01 - Cover


03 - Door And Control Panel


05 - Tub And Frame


07 - Motors And Pumps


09 - Wrapper And Trim


11 - Racks

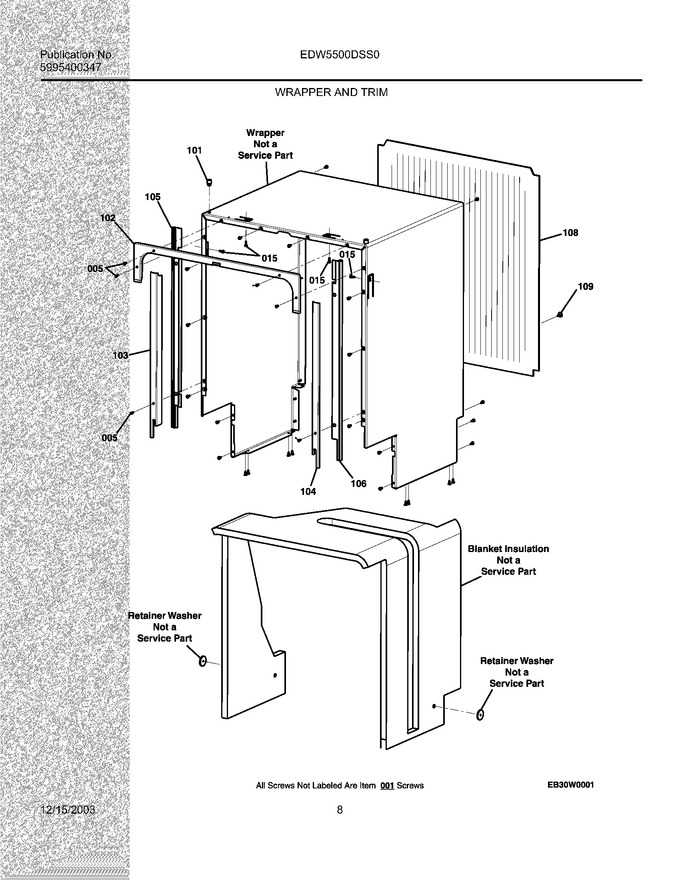

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	5304434827		Screw,extrudetite ,m4 X 10 Pnhd Ph		Appelez-nous	-
005	5304434831		Screw,c/sunk No.6 Hd ,no.8 X 11 Ab		Appelez-nous	-
015	5304434839		Screw,sab ,8 X 1/2 Pn Hd ,zc		Appelez-nous	-
101	5304434853		Bumper,wrapper Top		Appelez-nous	-
102	5304434854		Trim,cabinet Top ,stainless		Appelez-nous	-
103	5304434855		Trim,cabinet Side ,stainless ,lh		Appelez-nous	-
104	5304434856		Trim,cabinet Side ,stainless ,rh		Appelez-nous	-
105	5304434857		Extrusion,side Trim ,lh		Appelez-nous	-
106	5304436957		Extrusion,side Trim ,rh		Appelez-nous	-
108	5304434858		Panel,back		Appelez-nous	-
109	5304434859		Clip,back Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
