SELECT A DIAGRAM

01 - Cover


03 - Door And Control Panel

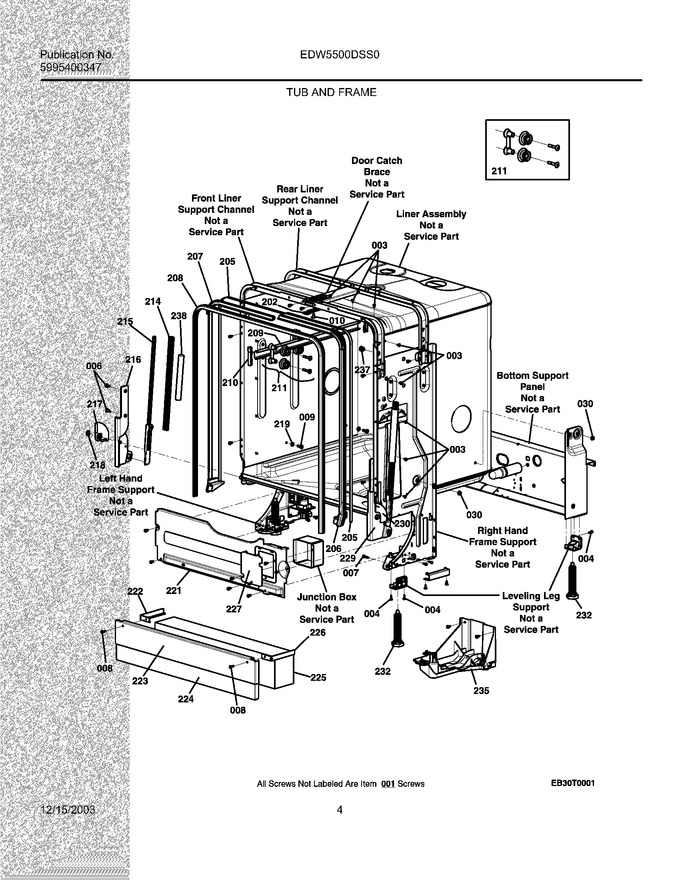

05 - Tub And Frame


07 - Motors And Pumps


09 - Wrapper And Trim


11 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	5304434827		Screw,extrudetite ,m4 X 10 Pnhd Ph		Appelez-nous	-
003	5304434829		Screw,flange Hd ,no.7-19 X 8 Hi/lo		Appelez-nous	-
004	5304434830		Screw,pan Hd Hi/lo ,no.7-19 X 1/2		Appelez-nous	-
006	5304434832		Screw,taptite ,m5 X 6 Truss Hd ,zc		Appelez-nous	-
007	5304434833		Screw,ph Pan Hd ,no.8 X 19		Appelez-nous	-
008	5304434834		Screw,alkon Tt0812 ,no.8 X 13 ,black		Appelez-nous	-
009	5304434835		Screw,truss Ph Hd ,m5 X 16 ,s/s		Appelez-nous	-
010	5304434836		Screw,e4 Torx ,m5 X 13 Ph Hd		Appelez-nous	-
030	5304434841		Lock Nut,whiz Zy ,m5 X 0.8 Hex		Appelez-nous	-
202	5304434860		Catch,door				$ 81.95
205	5304434861		Seal,retainer ,door Seal		Appelez-nous	-
206	5304434862		Retainer,door Seal ,rh				$ 153.83
207	5304434863		Retainer,door Seal ,lh				$ 158.87
208	5304434864		Seal,door ,black				$ 193.78
209	5304434865		Rail,upper Rack		Appelez-nous	-
210	5304434866		Stop,upper Rack Rail		Appelez-nous	-
211	5304434867		Support,roller Assy.		Appelez-nous	-
214	5304434868		Spring,door Hinge				$ 48.77
215	5304434869		Support,door Spring				$ 78.75
216	5304434870		Hinge,door ,lh				$ 80.85
217	5304434871		Guard Pad,door Hinge ,lh				$ 17.01
218	5304434872		Clip,door Pivot		Appelez-nous	-
219	5304434873		Washer,sealing		Appelez-nous	-
221	5304434874		Panel,front Cover		Appelez-nous	-
222	5304434875		Bracket,kickplate ,lh		Appelez-nous	-
223	5304434876		Panel,adj. Kickplate ,black ,top				$ 149.89
224	5304434877		Panel,adj. Kickplate ,black ,bottom				$ 191.84
225	5304434878		Insulation,kickplate				$ 66.41
226	5304434879		Bracket,kickplate ,rh				$ 15.19
227	5304434880		Cover,junction Box				$ 12.28
229	5304434881		Hinge,door ,rh				$ 48.72
230	5304434882		Guard Pad,door Hinge ,rh		Appelez-nous	-
232	5304434883		Leg,leveling Assy.				$ 59.01
235	5304434884		Support,motor/pump		Appelez-nous	-
237	5304434885		Cone,door Guide		Appelez-nous	-
238	5304436958		Sleeve,hinge ,(2)		Appelez-nous	-
