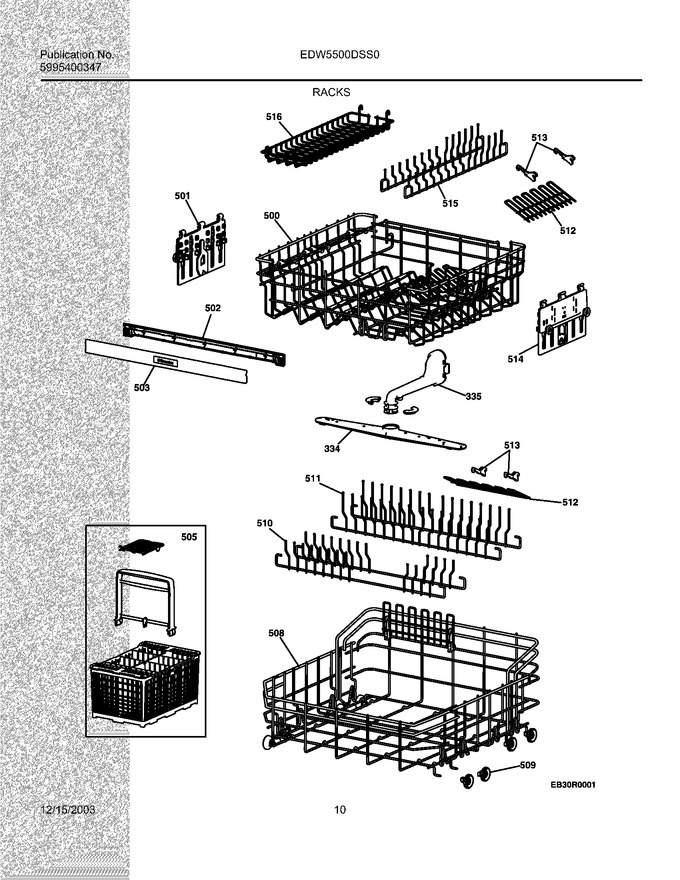

11 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
334	5304434920		Spray Arm,upper Assy.				$ 85.73
335	5304434921		Tube,spray Arm ,upper				$ 165.06
500	5304434950		Rack,upper Assembly ,complete		Appelez-nous	-
501	5304434951		Roller,easylift Assy. ,lh				$ 57.75
502	5304434952		Handle,front ,interior		Appelez-nous	-
503	5304434953		Handle,front ,exterior		Appelez-nous	-
505	5304434955		Basket,silverware Assy				$ 239.03
508	5304434956		Rack,lower Assembly ,complete				$ 470.82
509	5304434957		Roller Assembly,lower Rack				$ 67.04
510	5304434958		Fence,fold Down ,front ,lower Rack		Appelez-nous	-
511	5304434959		Fence,fold Down ,rear ,lower Rack		Appelez-nous	-
512	5304434960		Rack,cup ,hinged		Appelez-nous	-
513	5304434961		Clip,cup Rack		Appelez-nous	-
514	5304434962		Roller,easylift Assy. ,rh				$ 80.85
515	5304434963		Fence,fold Down ,upper Rack		Appelez-nous	-
516	5304434964		Basket,utensil		Appelez-nous	-
