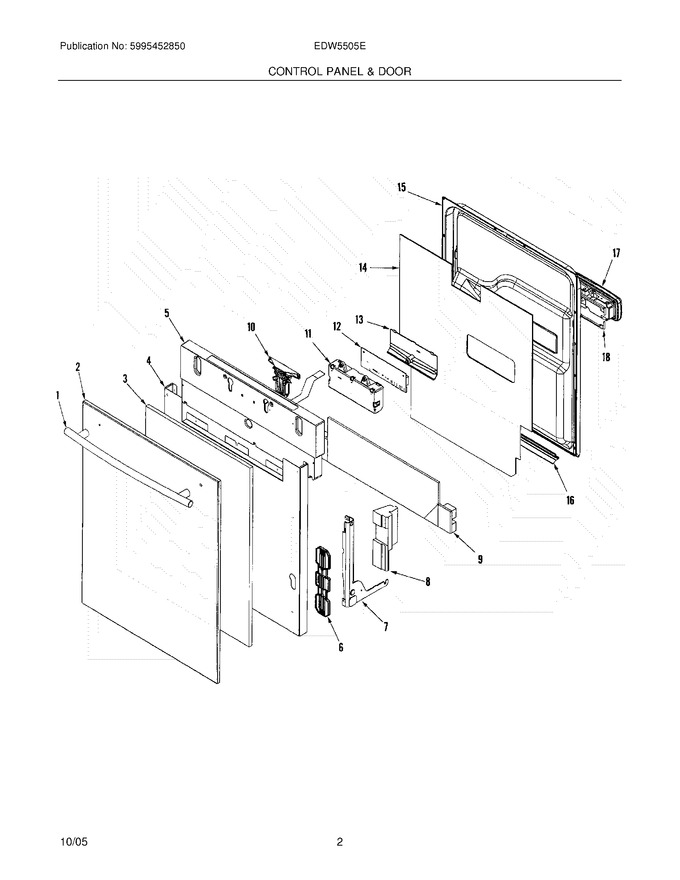

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304452496		Bar,towel ,stainless		Appelez-nous	-
2	5304452065		Panel,door ,stainless(order 5304452510 As Well)				$ 872.70
3	5304452502		Pad,foam		Appelez-nous	-
4	5304452503		Support,inner Door ,black		Appelez-nous	-
5	5304452068		Panel,control ,black		Appelez-nous	-
6	5304452505		Anchor,panel Fastener ,(2)		Appelez-nous	-
7	5304452508		Bracket,hinge ,rh(order 5304452510 As Well)		Appelez-nous	-
7	5304452507		Bracket,hinge ,lh(order 5304452510 As Well)		Appelez-nous	-
8	5304452511		Block,foam ,rh		Appelez-nous	-
8	5304452512		Block,foam ,lh		Appelez-nous	-
9	5304452513		Barrier,foam		Appelez-nous	-
10	5304452062		Latch Assembly		Appelez-nous	-
11	5304452514		Housing,control Board ,base				$ 33.72
12	5304452066		Board,control		Appelez-nous	-
13	5304452515		Housing,control Board ,top				$ 52.52
14	5304452516		Insulation,door		Appelez-nous	-
15	5304452053		Liner,door ,w/damper		Appelez-nous	-
16	5304452049		Seal,door ,bottom				$ 85.74
17	5304506521		Dispenser,detergent ,w/rinse Aid   (Replaces: 5304452518)			Immediately	$ 99.05
18	5304452519		Bracket,dispenser ,(2)		Appelez-nous	-
NI	5304452043		Switch,door ,(2)				$ 74.42
NI	5304452510		Wrap,foam ,(2)				$ 42.80
NI	5304452509		Screw,hinge Bracket ,(4)		Appelez-nous	-
NI	5304452506		Fastener,panel ,(4)		Appelez-nous	-
NI	5304452504		Damper,6`` X 18``		Appelez-nous	-
NI	5304452501		Nameplate,door		Appelez-nous	-
NI	218781101		Screw,door Liner ,(8)   (Replaces: 5304452517)				$ 15.60
NI	5304452500		Screw,towel Bar ,(2)		Appelez-nous	-
NI	5304452499		Plate,towel Bar ,back ,(2)		Appelez-nous	-
NI	5304452498		Stud,towel Bar ,(2)		Appelez-nous	-
NI	5304452622		Energy Guide		Appelez-nous	-
NI	5304452520		Screw,mounting ,(12)(for 5,11,13 & 18)				$ 11.37
