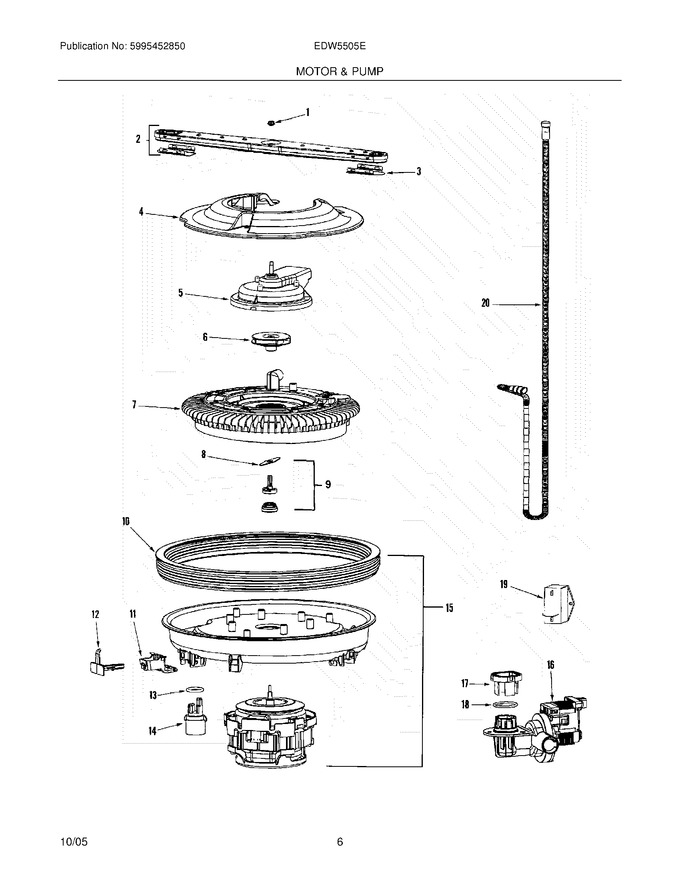

07 - Motor & Pump


09 - Water Distribution Assembly


11 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304452563		Cap,wash Arm ,gray				$ 51.98
2	5304452564		Wash Arm,lower ,w/shields		Appelez-nous	-
3	5304452565		Shield,radiant ,(2)		Appelez-nous	-
4	5304452566		Guard,filter ,gary		Appelez-nous	-
5	5304452568		Housing Assembly,discharge ,upper		Appelez-nous	-
6	5304452037		Impeller Assembly,wash				$ 73.45
7	5304452571		Filter Assembly,flowplate		Appelez-nous	-
8	5304452573		Chopper		Appelez-nous	-
9	5304452061		Seal Kit,sleeve ,metal Chopper		Appelez-nous	-
10	5304452574		Gasket,motor Mount				$ 180.00
11	5304452575		Lever,motor Mount ,(3)				$ 38.41
12	5304452576		Plunger,motor Mount ,(3)		Appelez-nous	-
13	5304452577		O-ring,sensor ,turbidity				$ 43.60
14	5304452034		Sensor,turbidity		Appelez-nous	-
15	5304452063		Motor Assembly,wash		Appelez-nous	-
16	5304452054		Pump Assembly,drain		Appelez-nous	-
17	5304452581		Flapper,inlet ,drain Pump				$ 15.41
18	5304452582		O-ring,drain Pump				$ 44.45
19	5304452583		Capacitor,wash Motor				$ 124.64
20	5304452036		Hose,drain				$ 124.70
NI	5304452586		Harness,wiring ,main				$ 162.30
NI	5304452569		Screw,housing ,(6)		Appelez-nous	-
NI	5304452570		Screw,impeller Assy		Appelez-nous	-
NI	5304452572		Screw,filter Assy ,(3)		Appelez-nous	-
NI	5304452578		Screw,sensor ,(2) ,turbidity		Appelez-nous	-
NI	5304452579		Screw,drain Pump ,(3)		Appelez-nous	-
NI	5304452580		Flapper,valve ,drain Pump				$ 30.03
NI	5304452561		Screw,mounting		Appelez-nous	-
NI	5304452584		Shield,capacitor		Appelez-nous	-
NI	5304452585		Clamp,drain Hose ,1 - 3/8``		Appelez-nous	-
NI	5304452567		Screw,filter Guard ,(3)		Appelez-nous	-
