Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304452587 Manifold,main Special Order $ 264.34

2 5304452588 Station,docking ,w/flappers Appelez-nous -
3 5304452042 Wash Arm,top ,w/retainer Special Order $ 102.65

4 5304452589 Retainer,wash Arm ,top Special Order $ 118.21


    View Diagram in Separate Window     Print Icon   Print Part List

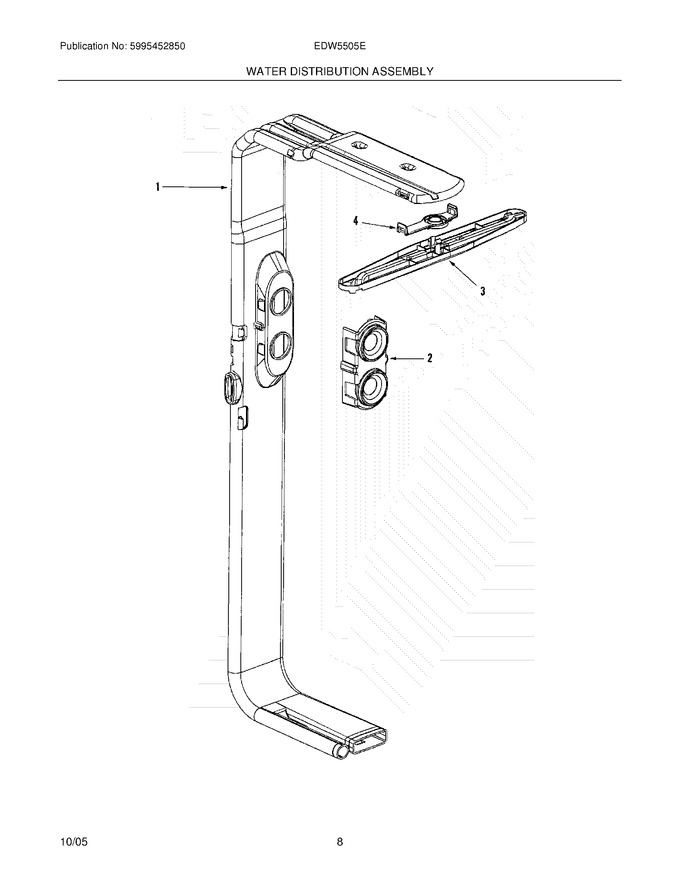

Diagram for EDW5505EPS
