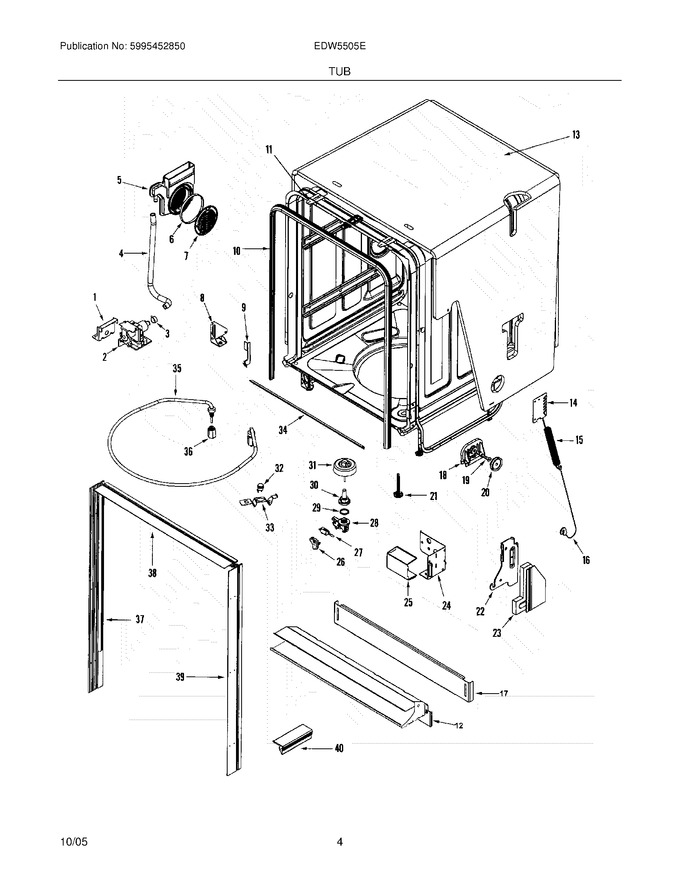

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304452521		Bracket,water Valve		Appelez-nous	-
2	5304452045		Valve,water		Appelez-nous	-
3	5304452523		Clamp,spring				$ 11.08
4	5304452524		Hose,injector				$ 190.83
5	5304452525		Inlet,air/water				$ 222.50
6	5304452526		Seal,inlet				$ 46.84
7	5304452527		Grill,inlet		Appelez-nous	-
8	5304452528		Bracket,support ,lh		Appelez-nous	-
9	5304452530		Trim,edge ,rh ,lower Corner				$ 43.60
9	5304452529		Trim,edge ,lh ,lower Corner				$ 50.83
10	5304452060		Seal,door				$ 272.42
11	5304452531		Bracket,mounting ,(2) ,cabinet		Appelez-nous	-
12	5304452532		Support,front ,black ,w/sound Box		Appelez-nous	-
13	5304452534		Insulation,tub		Appelez-nous	-
14	5304452536		Bracket,adjustment ,(2) ,door Spring				$ 20.53
15	5304452052		Spring,door ,(2)				$ 39.01
16	5304452064		Cable Assembly,door ,(2)				$ 60.95
17	5304452537		Panel,toe Plate ,black ,w/damper		Appelez-nous	-
18	5304452540		Bracket,cable ,(2)		Appelez-nous	-
19	5304452541		Bolt,shoulder ,(2) ,cable Bracket		Appelez-nous	-
20	5304452542		Roller,cable Bracket ,(2)				$ 43.60
21	5304452543		Leg,leveling ,(4)		Appelez-nous	-
22	5304452544		Support,hinge ,rh		Appelez-nous	-
22	5304452545		Support,hinge ,lh				$ 194.75
23	5304452546		Bracket,hinge Seal ,rh		Appelez-nous	-
23	5304452547		Bracket,hinge Seal ,lh		Appelez-nous	-
24	5304452548		Bracket,support ,junction Box		Appelez-nous	-
25	5304452549		Cover,junction Box				$ 28.93
26	5304452551		Cover,float Switch		Appelez-nous	-
27	5304452030		Switch,float		Appelez-nous	-
28	5304452046		Holder,float Switch				$ 42.94
29	5304452048		Seal,standpipe				$ 50.38
30	5304452047		Standpipe,float		Appelez-nous	-
31	5304452051		Float,gray		Appelez-nous	-
32	5304452032		Thermostat,limiting				$ 117.22
33	5304452552		Clip,thermostat		Appelez-nous	-
34	5304452553		Trim,tub Edge ,bottom				$ 61.65
35	5304452044		Heater,w/gasket		Appelez-nous	-
36	5304452555		Nut,heater ,(2)				$ 42.42
37	5304452556		Strip,trim ,lh				$ 75.06
38	5304452557		Strip,trim ,top				$ 45.93
39	5304452558		Strip,trim ,rh		Appelez-nous	-
40	5304452559		Seal,gap ,black ,toe Plate		Appelez-nous	-
NI	5304452562		Screw,mounting ,(8)(for 37 & 39)		Appelez-nous	-
NI	5304452535		Fastener,insulation ,(2)		Appelez-nous	-
NI	5304452538		Seal,sound ,black ,toe Plate		Appelez-nous	-
NI	5304452539		Bracket,support ,rear		Appelez-nous	-
NI	5304452522		Screw,water Valve ,(2)		Appelez-nous	-
NI	5304452550		Screw,cover		Appelez-nous	-
NI	5304452554		Gasket,heater		Appelez-nous	-
NI	5304452560		Screw,mounting ,(4)(for 12 & 17)		Appelez-nous	-
NI	5304452561		Screw,mounting(for 1,8,14,18,22 & 24)		Appelez-nous	-
NI	5304452533		Seal,sound Tray ,black		Appelez-nous	-
