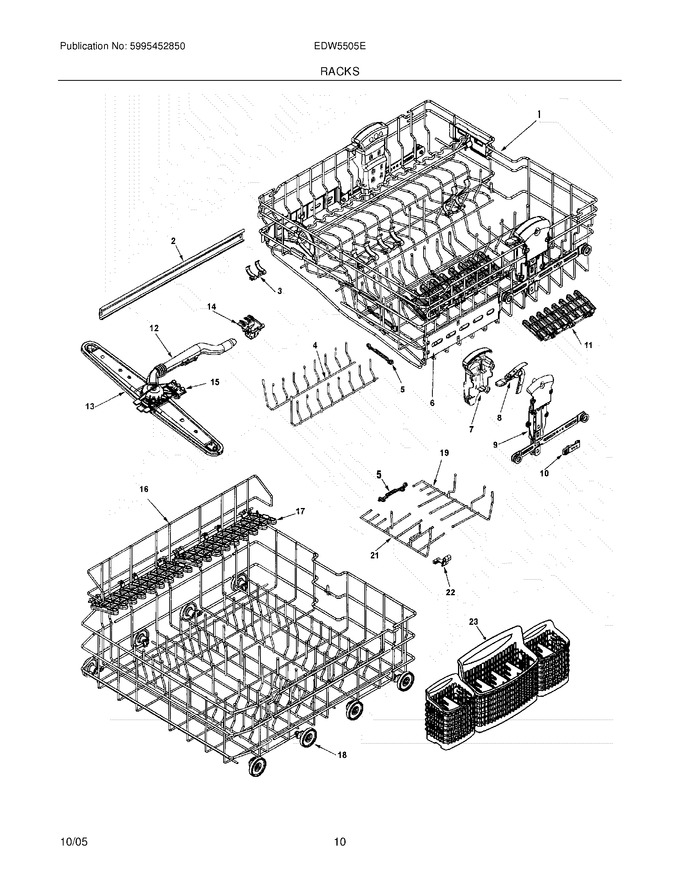

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304452590		Rack Assembly,upper		Appelez-nous	-
2	5304452593		Rail,slide ,inner ,(2)				$ 126.59
3	5304452595		Clip,cup ,(2)		Appelez-nous	-
4	5304452596		Tine,fold Away ,silver ,(2)		Appelez-nous	-
5	5304452597		Pivot,tine ,(3)				$ 43.21
6	5304452599		Guard,upper Rack ,low Side				$ 37.36
6	5304452598		Guard,upper Rack ,high Side		Appelez-nous	-
7	5304452600		Cover,adjuster ,upper Rack ,(2)		Appelez-nous	-
8	5304452601		Lever,adjuster ,upper Rack ,(2)		Appelez-nous	-
9	5304452057		Rack Adjuster,assembly ,rh				$ 234.62
9	5304452056		Rack Adjuster,assembly ,lh		Appelez-nous	-
10	5304452603		Stabilizer,rack Adjuster		Appelez-nous	-
11	5304452604		Shelf,cup ,upper Rack				$ 496.00
12	5304452605		Wash Arm,upper ,gray				$ 170.98
13	5304452606		Manifold Assembly,wash ,upper		Appelez-nous	-
14	5304452607		Clip,mainfold Assy ,back				$ 44.80
15	5304452608		Clip,mainfold Assy ,front				$ 43.60
16	5304452609		Rack Assembly,lower		Appelez-nous	-
17	5304452610		Shelf,cup ,gray ,lower Rack ,(2)		Appelez-nous	-
18	5304452055		Wheel Assembly,lower Rack ,(8)				$ 64.84
19	5304452611		Tine,folding ,long ,lower ,(4)		Appelez-nous	-
21	5304452612		Tine,folding ,short ,lower ,(2)		Appelez-nous	-
22	5304452613		Clip,folding Tine ,gray ,(18)		Appelez-nous	-
23	5304452614		Basket,silverware		Appelez-nous	-
NI	5304452602		Screw,8 - 18 X 1/2 ,(11)		Appelez-nous	-
NI	5304452594		Bearing,ball ,(8)		Appelez-nous	-
NI	5304452058		Stop,rail ,gray ,(4)				$ 42.90
NI	5304452050		Cage,ball Bearing ,(2)				$ 44.80
NI	5304452592		Handle,upper Rack ,front		Appelez-nous	-
NI	5304452591		Handle,upper Rack ,back		Appelez-nous	-
NI	5304452615		Cap,rack ,gray ,upper And Lower ,(2)		Appelez-nous	-
