SELECT A DIAGRAM

01 - Cover Sheet

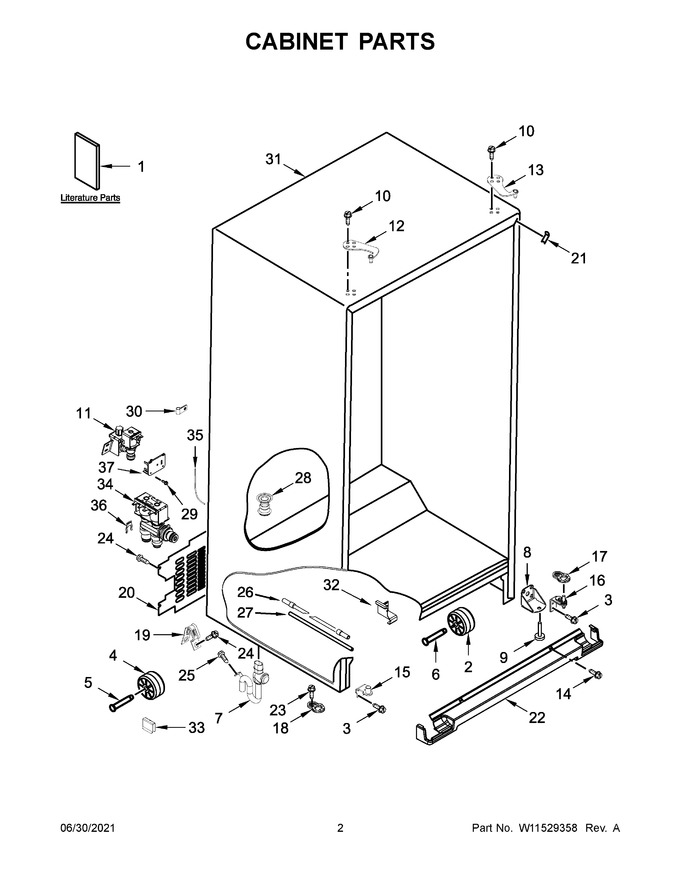

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10669500		Use And Care Guide		Appelez-nous	-
2	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
3	WPW10297485		Screw   (Replaces: W10297485)				$ 7.62
4	12477102		Roller			Immediately	$ 7.38
5	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.52
6	W11208384		Rivet, Roller   (Replaces: 981125)				$ 17.84
7	W11293072		Tube, Drain				$ 32.95
8	W11266052		Bracket, Foot   (Replaces: W10900758)				$ 63.15
9	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.85
10	WPW10308750		Screw (white)   (Replaces: W10308750)				$ 69.80
11	W11512399		Valve, Inlet   (Replaces: W11451511)			Immediately	$ 48.78
12	W10901051		Hinge, Top (freezer) (white)				$ 70.58
13	W11573587		Hinge, Top (refrigerator) (white)   (Replaces: W10901046)				$ 23.06
14	WPW10142283		Screw (white)   (Replaces: W10142283)				$ 9.84
15	W11293373		Hinge, Bottom (freezer) (white)   (Replaces: W11126855)				$ 67.40
16	W11320488		Hinge, Bottom (refrigerator) (white)   (Replaces: W11084349)			Immediately	$ 65.40
17	W11311685		Closer, Door (refrigerator) (white)   (Replaces: W10877806)				$ 13.25
18	W10876198		Closer, Door (freezer) (white)   (Replaces: W10770896)				$ 12.03
19	W11234470		Clamp, Power Cord   (Replaces: W11242280)				$ 21.07
20	W11453073		Cover, Unit				$ 65.00
21	12587703W		Filler, Wrapper (white)				$ 21.81
22	WPW10713160		Grille (white)   (Replaces: W10713160)				$ 131.08
23	WP489483		Screw   (Replaces: W10142234)				$ 10.87
24	WPW10141645		Screw   (Replaces: W10141645)				$ 7.67
25	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
26	WPW10279882		Tube, Filter Inlet   (Replaces: W10279882)				$ 108.79
27	WPW10279884		Tube, Filter Outlet   (Replaces: W10279884)				$ 131.51
28	W10370680		Fitting, Drain				$ 36.03
29	WPW10141625		Screw   (Replaces: W10141625)				$ 21.16
30	WP488366		Clamp, Tube   (Replaces: 489385)				$ 11.18
31	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
32	W10499011		Assembly, Bracket			Immediately	$ 66.33
33	W11545866		Clip, Axle Retainer   (Replaces: 2223388)				$ 11.31
34	WPW10341320		Assembly, Dual Water Valve   (Replaces: W10341320)			Immediately	$ 263.68
35	WPW10238092		Tube, Water   (Replaces: W10691732)			Immediately	$ 125.94
36	W11676611		Locking Ring (1/4)   (Replaces: W11175632)				$ 14.18
37	W10847867		Bracket, Water Valve   (Replaces: W10237915)				$ 76.90
10A	WPW10308751		Screw (black)   (Replaces: W10308751)				$ 8.41
12A	W10901052		Hinge, Top (freezer) (black)				$ 72.99
12B	W11590581		Hinge, Top (freezer) (grey)   (Replaces: W10901054)				$ 23.06
13A	W11568758		Hinge, Top (refrigerator) (black)   (Replaces: W10901047)				$ 23.81
13B	W11409290		Hinge, Top (refrigerator) (grey)   (Replaces: W10901049)				$ 67.12
14A	WP98008545		Screw (black)   (Replaces: W10308487)				$ 17.71
14B	WPW10308489		Screw (grey)   (Replaces: W10308489)			Immediately	$ 7.79
15A	W11269265		Hinge, Bottom (freezer) (black)   (Replaces: W11126854)				$ 67.46
15B	W11293374		Hinge, Bottom (freezer) (grey)   (Replaces: W11126848)				$ 69.83
16A	W11311416		Hinge, Bottom (refrigerator) (black)   (Replaces: W11084348)				$ 67.60
16B	W11292872		Hinge, Bottom (refrigerator) (grey)   (Replaces: W11084346)				$ 68.66
17A	W11311686		Closer, Door (refrigerator) (black)   (Replaces: W10877807)				$ 13.35
17B	W11311687		Closer, Door (refrigerator) (grey)   (Replaces: W10877804)				$ 13.40
18A	W10770895		Closer, Door (freezer) (black)				$ 15.03
18B	W10876191		Closer, Door (freezer) (grey)   (Replaces: W10770893)				$ 17.12
1A	W10858356		Tech Sheet		Appelez-nous	-
1B	W11098891		Energy Guide		Appelez-nous	-
21A	67003485		Filler, Wrapper (black)   (Replaces: 12587703B)			Immediately	$ 21.09
21B	WP12587703AP		Filler, Wrapper (grey)   (Replaces: 12587703AP)				$ 7.69
22A	WPW10713158		Grille (black)   (Replaces: W10713158)				$ 93.73
22B	WPW10713153		Grille (grey)   (Replaces: W10713153)			Immediately	$ 129.07
36A	W11678575		Locking Ring (5/16)   (Replaces: W11175631)				$ 14.19

    View Diagram in Separate Window       Print Part List
