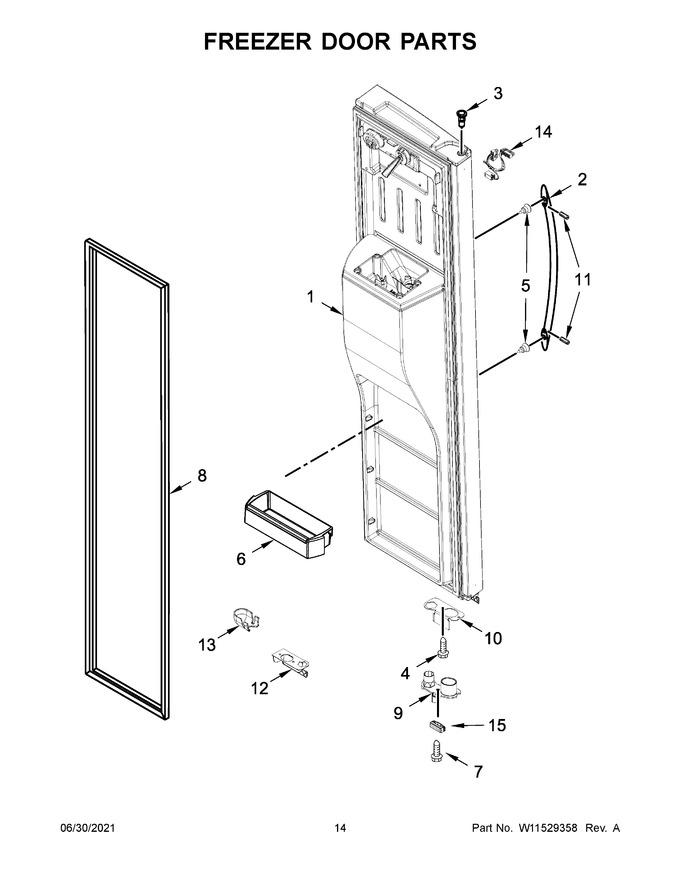

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW11202404 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (white) (Replaces: W11202404) |
|
$ 1,371.55 | |||||
| 2 | W11432251 | Handle (white) (Replaces: W11289637) |
|
$ 180.69 | |||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 7.76 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.85 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.85 | ||||
| 6 | WPW10430639 | Bin, Door (Replaces: W10430639) |
|
Immediately | $ 109.19 | ||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.52 | |||||
| 8 | WPW10247885 | Gasket, Door (beige) (Replaces: W10247885) |
|
$ 330.54 | |||||
| 9 | WPW10248015 | Closer, Upper Cam Door (white) (Replaces: W10248015) |
|
$ 12.25 | |||||
| 10 | W11293380 | Bracket, Door Stop (Replaces: W10910405) |
|
$ 65.91 | |||||
| 11 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 12 | W10632059 | Cover, Door Stop (white) |
|
$ 22.34 | |||||
| 13 | W10323148 | Cover, Wire |
|
$ 40.24 | |||||
| 14 | W11293361 | Wire, Jumper (Replaces: W10850872) |
|
$ 134.18 | |||||
| 15 | W11687672 | Bumper, Door (white) (Replaces: W10407175) |
|
$ 14.22 | |||||
| 12A | W10632060 | Cover, Door Stop (black) |
|
$ 21.24 | |||||
| 12B | WPW10632062 | Cover, Door Stop (grey) (Replaces: W10632062) |
|
$ 7.19 | |||||
| 15A | W10407187 | Bumper, Door (black) |
|
$ 46.04 | |||||
| 15B | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 22.24 | ||||
| 1A | LW11202402 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (black) (Replaces: W11202402) |
|
$ 1,372.85 | |||||
| 1B | LW11202403 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (black Stainless) (Replaces: W11202403) |
|
$ 1,384.62 | |||||
| 1C | LW11202405 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless) (Replaces: W11202405) |
|
$ 1,430.82 | |||||
| 2A | W11450221 | Handle (black) (Replaces: W11289638) |
|
$ 180.62 | |||||
| 2B | W11450223 | Handle (black Stainless) (Replaces: W11289639) |
|
Immediately | $ 179.98 | ||||
| 2C | W11542651 | Handle (stainless) (Replaces: W11289640) |
|
Immediately | $ 140.99 | ||||
| 8A | WPW10249913 | Gasket, Door (black) (Replaces: W10249913) |
|
$ 305.76 | |||||
| 8B | WPW10355585 | Gasket, Door (grey) (Replaces: W10249917) |
|
$ 321.21 | |||||
| 9A | W11607100 | Closer, Upper Cam Door (black) (Replaces: W10257204) |
|
Immediately | $ 13.31 | ||||
| 9B | WPW10257206 | Closer, Upper Cam Door (grey) (Replaces: W10257206) |
|
Immediately | $ 12.55 |
