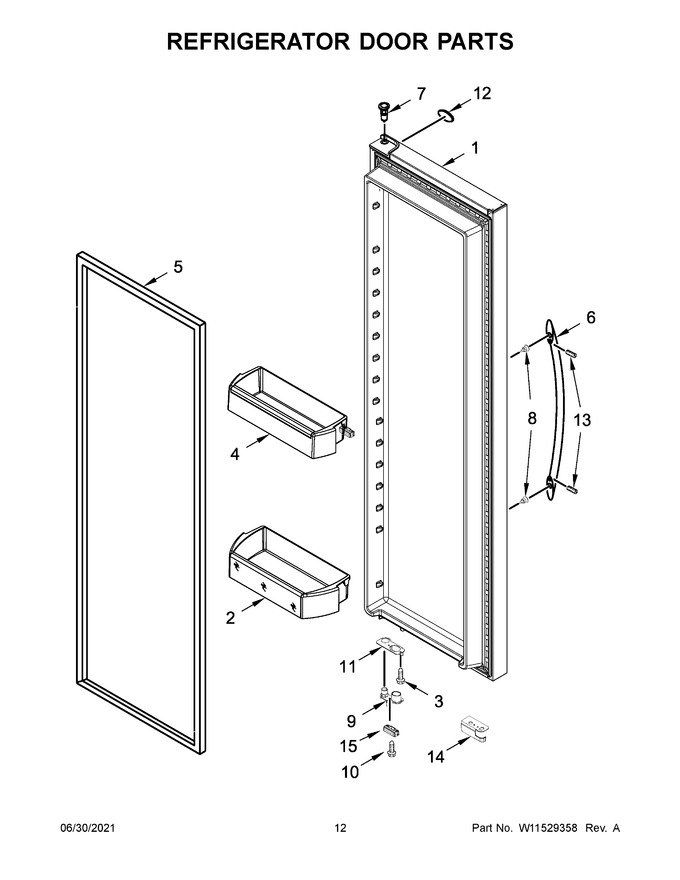

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW11091611 | Door, Refrigerator (includes Item 5) (white) (Replaces: W11091611) |
|
$ 585.58 | |||||
| 2 | WPW10710203 | Bin, Gallon Door (Replaces: W10710203) |
|
Immediately | $ 37.37 | ||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.52 | |||||
| 4 | WPW10451873 | Bin, Shallow Door (Replaces: W10451873) |
|
$ 88.56 | |||||
| 5 | WPW10247884 | Gasket, Door (beige) (Replaces: W10247884) |
|
$ 307.59 | |||||
| 6 | W11432251 | Handle (white) (Replaces: W11289637) |
|
$ 180.69 | |||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 7.76 | |||||
| 8 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.85 | ||||
| 9 | WPW10248011 | Closer, Upper Cam Door (white) (Replaces: W10248011) |
|
$ 12.31 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.85 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10888898) |
|
$ 76.42 | |||||
| 12 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 83.10 | ||||
| 13 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 14 | W10789144 | Cover, Door Stop (white) |
|
$ 18.46 | |||||
| 15 | W11687672 | Bumper, Door (white) (Replaces: W10407175) |
|
$ 14.22 | |||||
| 14A | W10789145 | Cover, Door Stop (black) |
|
$ 18.45 | |||||
| 14B | W11661847 | Cover, Door Stop (grey) (Replaces: W10789147) |
|
Immediately | $ 30.20 | ||||
| 15A | W10407187 | Bumper, Door (black) |
|
$ 46.04 | |||||
| 15B | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 22.24 | ||||
| 1A | LW11091614 | Door, Refrigerator (includes Item 5) (black) (Replaces: W11091614) |
|
$ 608.65 | |||||
| 1B | LW11089631 | Door, Refrigerator (includes Item 5) (black Stainless) (Replaces: W11089631) |
|
$ 623.55 | |||||
| 1C | LW11091610 | Door, Refrigerator (includes Item 5) (stainless) (Replaces: W11091610) |
|
$ 814.62 | |||||
| 5A | WPW10249912 | Gasket, Door (black) (Replaces: W10249912) |
|
$ 313.50 | |||||
| 5B | W10355582 | Gasket, Door (grey) (Replaces: W10249916) |
|
$ 325.01 | |||||
| 6A | W11450221 | Handle (black) (Replaces: W11289638) |
|
$ 180.62 | |||||
| 6B | W11450223 | Handle (black Stainless) (Replaces: W11289639) |
|
Immediately | $ 179.98 | ||||
| 6C | W11542651 | Handle (stainless) (Replaces: W11289640) |
|
Immediately | $ 140.99 | ||||
| 9A | WPW10257201 | Closer, Upper Cam Door (black) (Replaces: W10257201) |
|
$ 12.31 | |||||
| 9B | WPW10257203 | Closer, Upper Cam Door (grey) (Replaces: W10257203) |
|
$ 12.34 |
