SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Optional Parts (not Included)

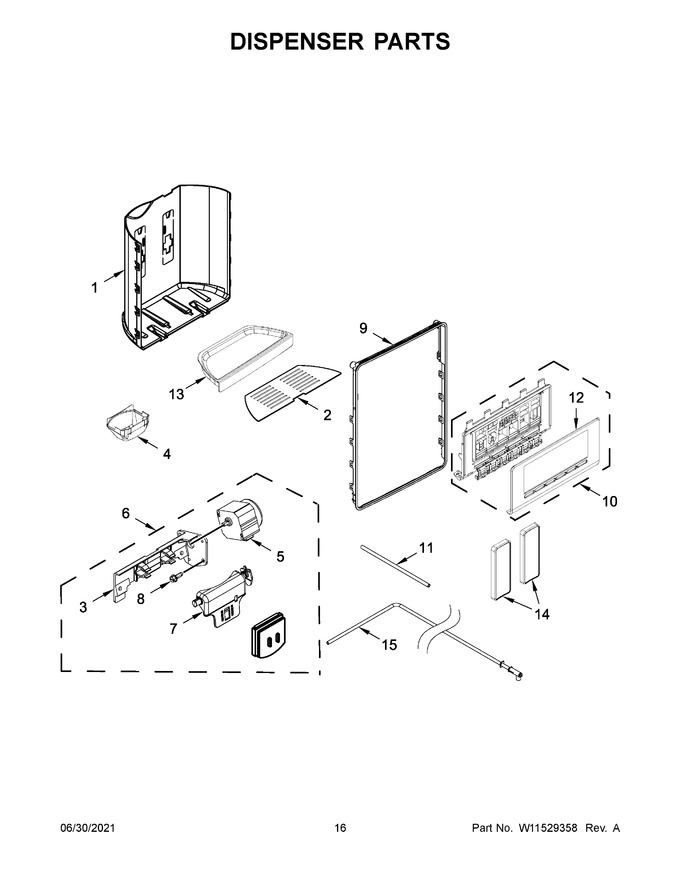

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10254254		Wall, Dispenser False (white)				$ 139.09
2	WPW10276209		Grate, Drip Tray (stainless)   (Replaces: W10276209)				$ 81.55
3	W10174827		Bracket, Ice Door				$ 76.42
4	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 23.94
5	WPW10205978		Motor, Dispenser   (Replaces: W10205978)				$ 104.12
6	W11098702		Assembly, Separator   (Replaces: W10781994)				$ 154.56
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10276265		Ring, Trim (white)				$ 63.74
10	W11239666		Assembly, User Interface (includes Light Feature)   (Replaces: W11174483)				$ 451.94
11	W11620106		Tube, Water   (Replaces: W10691730)				$ 117.84
12	W10458867		Cover, Front (black)				$ 302.83
13	W10254258		Tray, Drip (white)				$ 99.03
14	W10370583		Pad, Ice And Water (white)		Appelez-nous	-
15	WPW10279831		Tube, Water   (Replaces: W10279831)				$ 133.08
13A	W10254259		Tray, Drip (black)				$ 71.51
13B	W10276225		Tray, Drip (satina)				$ 74.06
14A	W11812026		Pad, Ice And Water (black)   (Replaces: W10370577)				$ 63.03
14B	W11624941		Pad, Ice And Water (grey)   (Replaces: W10370582)				$ 70.82
1A	W10254255		Wall, Dispenser False (black)				$ 134.48
1B	W10276226		Wall, Dispenser False (satina)				$ 141.15
9A	W10335549		Ring, Trim (black)		Appelez-nous	-
9B	W11087882		Ring, Trim (chromium Frost)				$ 70.05

    View Diagram in Separate Window       Print Part List
