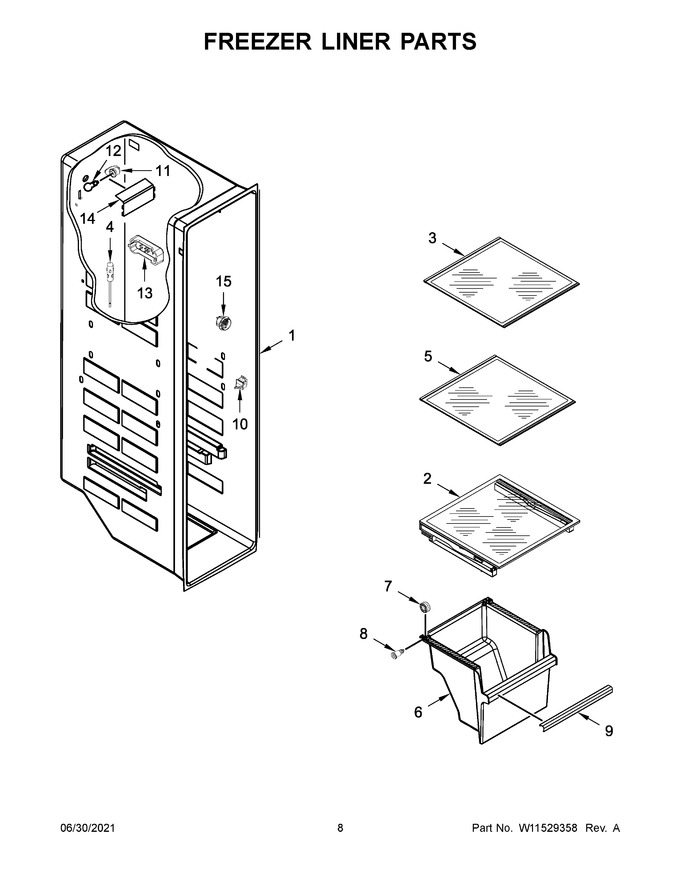

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | W10836801 | Assembly, Cover (Replaces: W10527863) |
|
$ 183.21 | |||||
| 3 | W11130202 | Shelf, Glass Upper (Replaces: W10773886) |
|
$ 224.09 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 32.00 | ||||
| 5 | W11130203 | Shelf, Glass Lower (Replaces: W10773887) |
|
$ 224.09 | |||||
| 6 | W11106313 | Pan, Freezer (also Order Item 7) (Replaces: W10260983) |
|
$ 117.30 | |||||
| 7 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 14.99 | ||||
| 8 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 17.05 | ||||
| 9 | W11236850 | Trim, Handle (Replaces: W11034724) |
|
- | |||||
| 10 | W11396033 | Switch, Light (Replaces: W10847849) |
|
Immediately | $ 37.30 | ||||
| 11 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 12 | W11216993 | Lamp, Led (Replaces: W11125625) |
|
Immediately | $ 43.24 | ||||
| 13 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 84.17 | ||||
| 14 | WPW10269101 | Lens (Replaces: W10269101) |
|
$ 102.33 | |||||
| 15 | WPW10119935 | Socket, Light (Replaces: 2155597) |
|
$ 101.10 |
