SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf , Lit/optional


06 - Unit


07 - Refrigerator Door


08 - Ice Maker


09 - Freezer Door

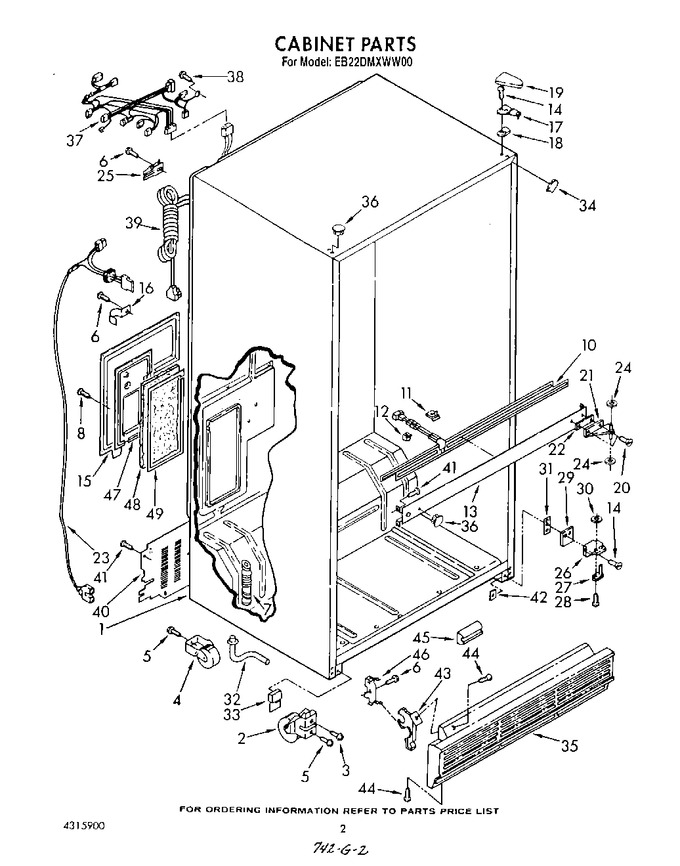

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2152011		Roller, Front		Appelez-nous	-
3	489333		Screw		Appelez-nous	-
4	2147324		Roller, Rear (2)		Appelez-nous	-
5	WP489427		Screw, 1/4-28 X 1/2 (6)   (Replaces: 489339)				$ 7.84
6	WP489478		Screw   (Replaces: 489242)				$ 8.18
7	942768		Fitting, Drain		Appelez-nous	-
8	WP489464		Screw (10)   (Replaces: 489337)			Immediately	$ 8.38
10	1105433		Heater, Mullion		Appelez-nous	-
11	2149060		Clip, Mullion (4)		Appelez-nous	-
12	1115105		Spacer (3)		Appelez-nous	-
13	1127245		Center Rail (almond)		Appelez-nous	-
13	1127242		Center Rail (white)		Appelez-nous	-
14	489327		Screw		Appelez-nous	-
15	2149157		Cover, Flush		Appelez-nous	-
16	1105607		Tube Clamp (3)		Appelez-nous	-
17	1123514		Hinge, Top		Appelez-nous	-
18	1123515		Shim, Hinge Top				$ 6.58
19	989194		Hinge Cover (almond)		Appelez-nous	-
19	842010		Hinge Cover (white)		Appelez-nous	-
20	489179		Screw		Appelez-nous	-
21	836153		Hinge, Center		Appelez-nous	-
22	836195		Shim, Center (repair)		Appelez-nous	-
22	836194		Shim, Hinge Center		Appelez-nous	-
23	1127489		Wiring Assembly, Icemaker		Appelez-nous	-
24	WP488296		Washer, 11/64   (Replaces: 488296)				$ 7.55
25	549193		Clamp-service Cord				$ 14.06
26	1115908		Hinge Butt, Bottom		Appelez-nous	-
27	654366		Hinge Pin, Bottom				$ 27.15
28	488714		Screw 10-32 X 5/16				$ 5.48
29	836196		Shim, Bottom		Appelez-nous	-
30	489200		Washer, 7/32				$ 7.75
31	1129868		Spacer		Appelez-nous	-
32	1127377		Extension, Drain Tube		Appelez-nous	-
33	1106808		Corner Filler, Grille		Appelez-nous	-
34	1110708		Filler, Wrap Corner (2) (white)		Appelez-nous	-
34	1110709		Filler, Wrap Corner (2) (almond)		Appelez-nous	-
35	1106806		Grille		Appelez-nous	-
36	1129062		Hole Plug (5) (white)		Appelez-nous	-
36	1129063		Hole Plug (5) (almond)		Appelez-nous	-
37	2149887		Cabinet Wiring Assembly		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 8.78
39	937360		Cord, Service		Appelez-nous	-
40	2147329		Cover, Unit		Appelez-nous	-
41	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
42	2147310		Tap-plate, Bottom Hinge		Appelez-nous	-
43	WP944224		Support (2)   (Replaces: 944224)				$ 7.94
44	489173		Screw		Appelez-nous	-
45	546131		Bumper, Grille		Appelez-nous	-
46	2147227		Clip, Grille Retainer (2)				$ 5.51
47	1115013		Plug Cover		Appelez-nous	-
48	1115131		Insulation		Appelez-nous	-
49	1121118		Sealing Gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
