SELECT A DIAGRAM

02 - Cabinet


03 - Liner

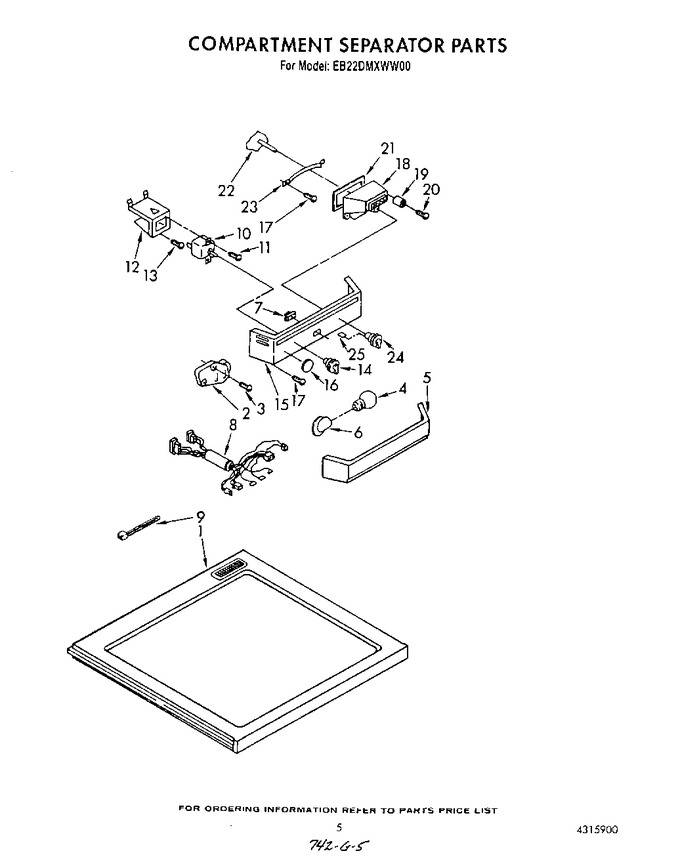

04 - Compartment Separator


05 - Shelf , Lit/optional


06 - Unit


07 - Refrigerator Door


08 - Ice Maker


09 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2149165		Compartment Separator Assembly (includes Center Rail And Heater Assembly) (almond)		Appelez-nous	-
1	2149152		Compartment Separator Assembly (includes Center Rail And Heater Assembly) (white)		Appelez-nous	-
2	1127591		Defrost Timer		Appelez-nous	-
3	WP488163		Screw, 8 X 1-3/8 (2)   (Replaces: 487534)				$ 7.92
4	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 11.30
5	983910		Light Lens		Appelez-nous	-
6	4387478		Light Socket   (Replaces: 851067)			Immediately	$ 115.67
7	1105167		Switch, Toggle		Appelez-nous	-
8	2147064		Wiring Assembly, Control Box		Appelez-nous	-
9	1102000		Cable Tie		Appelez-nous	-
10	WP819470		Thermostat Barrier Assembly   (Replaces: 1115076)				$ 164.96
11	WP965173		Screw, 8-15 X 3/8 (2)   (Replaces: 487584)			Immediately	$ 11.87
12	848446		Bracket, Thermostat		Appelez-nous	-
13	488474		Screw, 8-32 X 3/8		Appelez-nous	-
14	1127260		Control Knob		Appelez-nous	-
15	1127261		Control Panel Assembly (includes Item 16)		Appelez-nous	-
16	1127419		Hole Plug		Appelez-nous	-
17	WP489478		Screw   (Replaces: 489242)				$ 8.18
18	986021		Diffuser Assembly, Air		Appelez-nous	-
19	836667		Spacer (2)		Appelez-nous	-
20	488357		Screw, 8 X 1-1/4 (2)		Appelez-nous	-
21	1127488		Gasket		Appelez-nous	-
22	984658		Damper, Air				$ 8.39
23	836493		Retainer, Air Damper		Appelez-nous	-
24	1127263		Knob, Air Diffuser (includes Item 25)		Appelez-nous	-
25	837444		Knob, Retainer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
