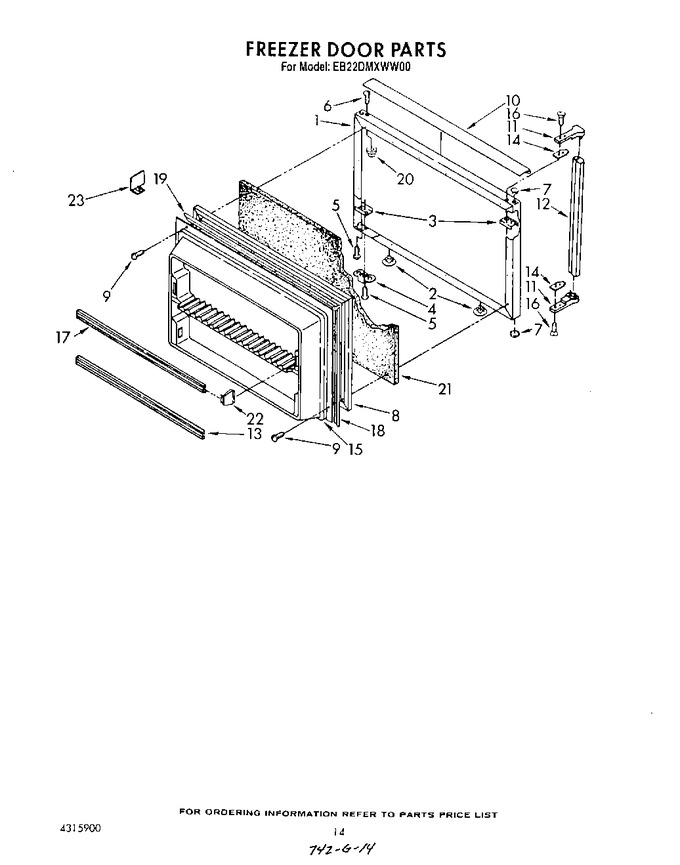

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1123162		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
1	1123159		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
8	1127256		Door Gasket, Magnetic		Appelez-nous	-
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
10	1106148		Trim, Door		Appelez-nous	-
11	944157		End Cap (2)		Appelez-nous	-
12	1127258		Handle, Center		Appelez-nous	-
13	1114376		Trim, Door Shelf		Appelez-nous	-
14	943188		Spacer, Handle Door (2)				$ 7.80
15	1127255		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	1124227		Trim, Door Shelf		Appelez-nous	-
18	986015		Gasket Retainer, Side (2)		Appelez-nous	-
19	836118		Gasket Retainer, Top & Bottom		Appelez-nous	-
20	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
21	876029		Kit, Foam Slab		Appelez-nous	-
22	4386917		End Cap, Trim (4)   (Replaces: 1105685)			Immediately	$ 18.90
23	1114380		Divider, Door Shelf (2)		Appelez-nous	-
