SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf , Lit/optional


06 - Unit


07 - Refrigerator Door

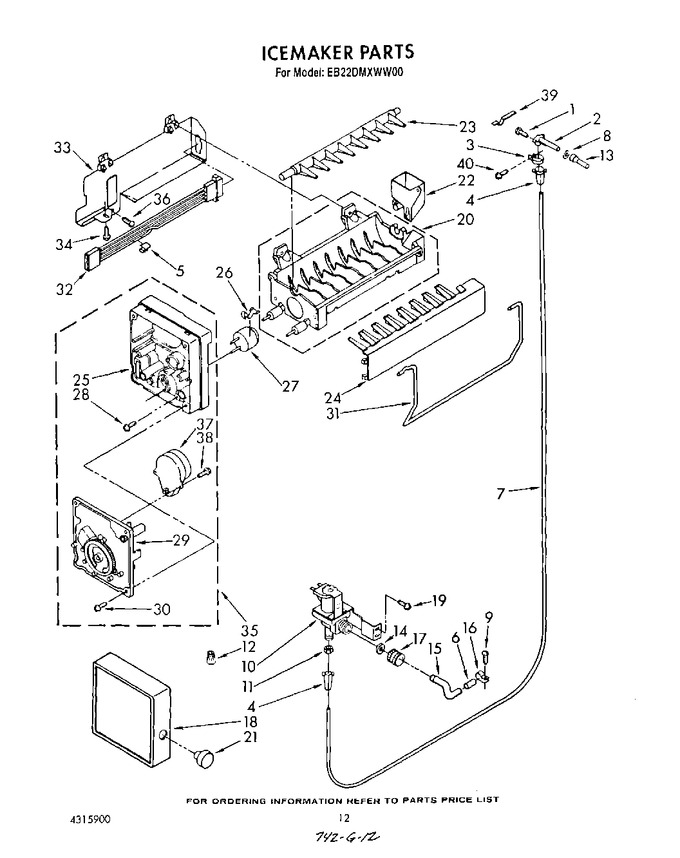

08 - Ice Maker


09 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
2	WP2196157		Fitting, Water Tube   (Replaces: 836489)			Immediately	$ 12.59
3	WP488878		Clamp, Tube   (Replaces: 488878)				$ 12.18
4	4387491		Insert, Tube   (Replaces: 841707)				$ 8.23
5	WP628379		Clip, Fuse   (Replaces: 628288)				$ 11.10
6	WP2158826		Dampener   (Replaces: 836074)				$ 1.82
7	W10823511		Tube, Water   (Replaces: 1108348)			Immediately	$ 32.41
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
9	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 8.40
10	4318047		Valve Solenoid   (Replaces: 627910)			Immediately	$ 74.09
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 11.51
12	227991		Connector Wire		Appelez-nous	-
13	939027		Tube, Water Inlet		Appelez-nous	-
14	628337		Washer		Appelez-nous	-
15	627854		Tube, Inlet Valve		Appelez-nous	-
16	510716		Clamp Tube		Appelez-nous	-
17	537588		Nut, Valve		Appelez-nous	-
18	WPW10289690		Cover   (Replaces: 1116224)			Immediately	$ 8.82
19	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488649)				$ 22.22
20	WPW10190929		Mold & Heater Assembly (also Order 542638 Silicone Grease)   (Replaces: 628228)				$ 233.15
21	627992		Knob		Appelez-nous	-
22	WP628356		Bearing & Inlet   (Replaces: 627791)				$ 53.75
23	WP627843		Ejector   (Replaces: 627843)				$ 87.78
24	WP2182124		Ice Stripper   (Replaces: 627788)				$ 90.35
25	WP2195914		Support   (Replaces: 627790)				$ 109.80
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.60
27	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 627985)				$ 114.64
28	8533917		Screw   (Replaces: 489322)				$ 14.04
29	W10190935		Module Assembly   (Replaces: 628342)			Immediately	$ 110.07
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
31	2149150		Shut Off Arm		Appelez-nous	-
32	WP2187464		Harness, Wiring   (Replaces: 628171)				$ 130.80
33	627751		Shield, Heat		Appelez-nous	-
34	00489128		Screw, 8-32 X 27/64   (Replaces: 489128)				$ 859.97
35	W10190935		Module Assembly (includes Items 25, 28, 29, 30, 37, & 38)   (Replaces: 483105)			Immediately	$ 110.07
36	486214		Screw 8-15 X 1/2		Appelez-nous	-
37	W10190935		Motor   (Replaces: 628302)			Immediately	$ 110.07
38	489136		Screw (3-24 X 23/64)				$ 10.80
39	652604		Clip		Appelez-nous	-
40	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26

    View Diagram in Separate Window       Print Part List
