SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf , Lit/optional


06 - Unit

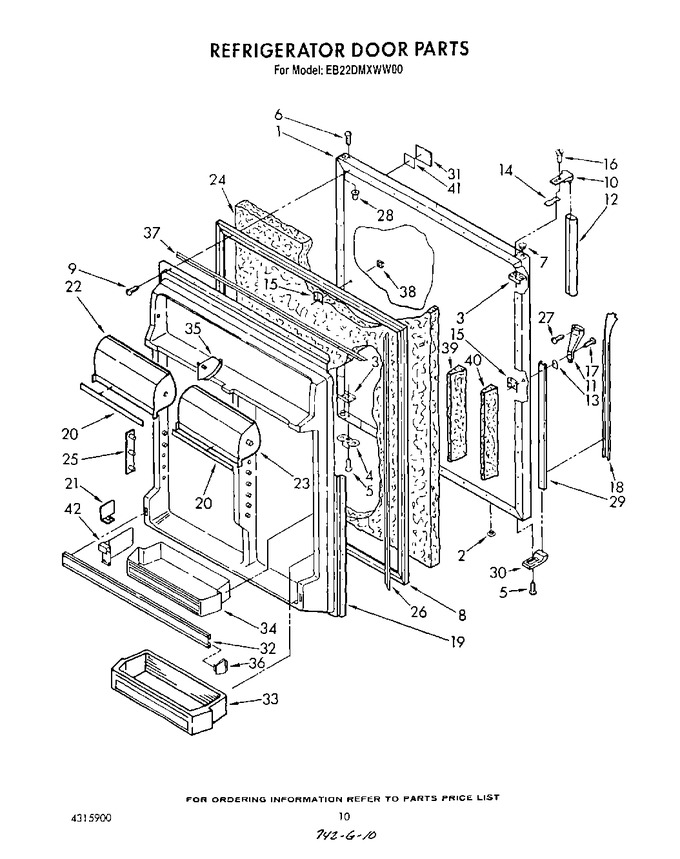

07 - Refrigerator Door


08 - Ice Maker


09 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1110304		Panel, Refrigerator Door (also Order Item 24) (white)		Appelez-nous	-
1	1110306		Panel, Refrigerator Door (also Order Item 24) (almond)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	1114785		Door Gasket, Magnetic		Appelez-nous	-
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
10	944157		Handle End		Appelez-nous	-
11	1109189		Handle End, Side		Appelez-nous	-
12	1109048		Handle, Center		Appelez-nous	-
13	935075		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
16	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	1119665		Insert, Handle		Appelez-nous	-
19	1127254		Interior Door Panel		Appelez-nous	-
20	1124223		Trim, Door Compartment		Appelez-nous	-
21	1114380		Divider, Door Shelf		Appelez-nous	-
22	1124222		Compartment Door, Right Side		Appelez-nous	-
23	1124225		Compartment Door, Left Side		Appelez-nous	-
24	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
25	1116986		Pin Plate (8)				$ 12.10
26	986008		Gasket Retainer, Side (2)		Appelez-nous	-
27	489022		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
28	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
29	935873		Retainer, Insert		Appelez-nous	-
30	1105804		Endcap, Insert Retainer		Appelez-nous	-
31	1111555		Nameplate		Appelez-nous	-
32	1124254		Trim, Door Shelf		Appelez-nous	-
33	1124208		Bin, Door Shelf (2)		Appelez-nous	-
34	1124209		Bin, Door Shelf (deep) (2)		Appelez-nous	-
35	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 8.06
36	4386917		End Cap Trim   (Replaces: 1105685)			Immediately	$ 18.90
37	836118		Gasket Retainer, Top & Bottom		Appelez-nous	-
38	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
38	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
39	1122711		Door Dike, Center		Appelez-nous	-
40	1122709		Door Dike, Side (2)		Appelez-nous	-
41	991259		Tape Strip		Appelez-nous	-
42	2149057		Divider-deep Rear (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
