01 - Cover Sheet


02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner And Icemaker Parts


06 - Control Panel Parts


07 - Refrigerator Shelf Parts


08 - Freezer Shelf Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Top Grille And Unit Cover Parts


12 - Upper Unit Parts


13 - Lower Unit And Tube Parts

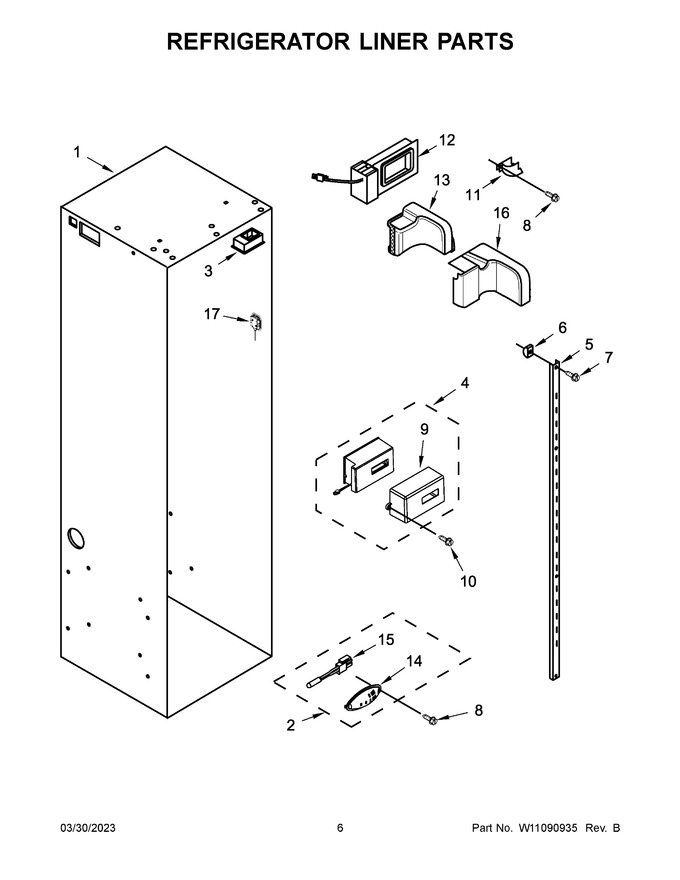

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W10784036		Assembly, Thermistor			Immediately	$ 106.96
3	W10832844		Duct, Air				$ 109.83
4	W10775715		Assembly, Diffuser				$ 157.53
5	W10749139		Ladder (long)				$ 184.31
6	2259445		Support, Ladder		Appelez-nous	-
7	W10678207		Screw   (Replaces: W10832438)				$ 16.43
8	W10678210		Screw (black)				$ 19.80
9	W10775714		Cover, Air Diffuser		Appelez-nous	-
10	W11624204		Screw   (Replaces: 486194)				$ 14.72
11	W10775705		Guard, Air Return		Appelez-nous	-
12	WP2221296		Assembly, Air Baffle   (Replaces: 2221296)			Immediately	$ 412.58
13	W10203322		Assembly, Diffuser			Immediately	$ 89.11
14	W10784036		Cover, Thermistor   (Replaces: W10783891)			Immediately	$ 106.96
15	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
16	W10775713		Cover, Diffuser				$ 90.94
17	W11683242		Assembly, Led Module   (Replaces: W10843339)			Immediately	$ 333.96
5A	W10749140		Short				$ 171.57
