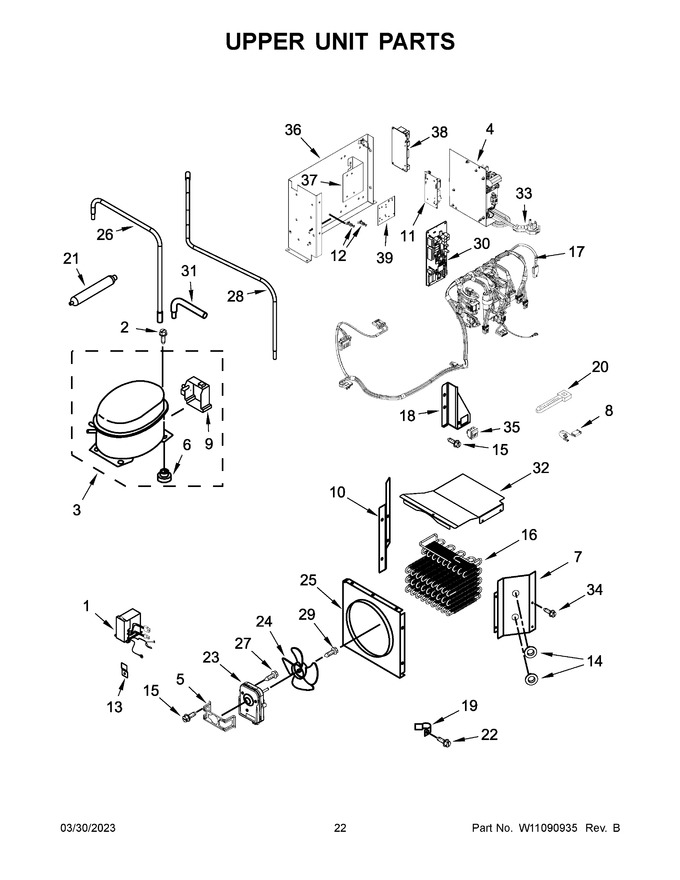

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11573593		Assembly, Inverter Box   (Replaces: W10645666)				$ 223.37
2	876811		Screw   (Replaces: 489373)				$ 7.79
3	W11103181		Compressor   (Replaces: W10913755)			Immediately	$ 655.90
4	WPW10200659		Control, Electronic   (Replaces: W10200659)			Immediately	$ 355.73
5	W10414681		Bracket, Fan Motor				$ 79.53
6	876811		Grommet   (Replaces: 1100826)				$ 7.79
7	WPW10525179		Support, Condenser (right Hand)   (Replaces: W10525179)				$ 110.88
8	2310195		Assembly, Jumper Wire (power Switch To Power Cord)				$ 123.20
9	2215676		Cover, Terminal				$ 94.36
10	WPW10525177		Support, Condenser (left Hand)   (Replaces: W10525177)				$ 110.88
11	W10830288		Supply, Led Power   (Replaces: W10790783)			Immediately	$ 493.01
12	WP2203075		Spacer   (Replaces: 2203075)			Immediately	$ 18.81
13	2256328		Bracket, Inverter Mounting		Appelez-nous	-
14	W10587113		Grommet		Appelez-nous	-
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
16	W10591457		Condenser				$ 248.55
17	W10785721		Assembly, Unit Wire				$ 222.90
18	W10321055		Bracket, Control Assembly		Appelez-nous	-
19	549193		Clamp, Power Cord				$ 14.06
20	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 8.30
21	WPW10143759		Drier   (Replaces: W10175593)			Immediately	$ 30.78
22	00487294		Screw   (Replaces: 487294)				$ 175.09
23	W11127829		Motor, Condenser Fan   (Replaces: W10527155)			Immediately	$ 185.05
24	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 99.82
25	W10415670		Orifice, Fan		Appelez-nous	-
26	W10624944		Tube, Drier Transition				$ 35.25
27	WP8533993		Screw   (Replaces: W10146359)				$ 11.21
28	W10648264		Tube, Heat Loop Transition				$ 77.11
29	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
30	WPW10184634		Control, Electronic   (Replaces: W10184634)				$ 434.29
31	W10528578		Tube, Process				$ 39.82
32	W10525175		Cover, Condenser Support				$ 72.38
33	2310196		Cord, Power			Immediately	$ 88.52
34	W11624204		Screw   (Replaces: 486194)				$ 14.72
35	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 109.08
36	W10550831		Housing, Control Board Mounting		Appelez-nous	-
37	W10761479		Plate, Circuit Board		Appelez-nous	-
38	WPW10624574		Supply, Power   (Replaces: W10624574)			Immediately	$ 231.58
39	W10770059		Plate, Circuit Board (top)				$ 144.74
NI	978030		Valve, Access (3/4")				$ 137.25
NI	978029		Valve, Access (5/8")				$ 93.85
NI	978028		Valve, Access		Appelez-nous	-
NI	SF5538		Valve, Access (3/8")   (Replaces: 978027)				$ 21.64
NI	SF5516		Valve, Access (5/16")   (Replaces: 978026)			Immediately	$ 18.94
NI	WP978025		Valve, Access (1/4")   (Replaces: 978025)			Immediately	$ 110.51
NI	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
NI	876764		Valve, Access (3/16")			Immediately	$ 95.92
