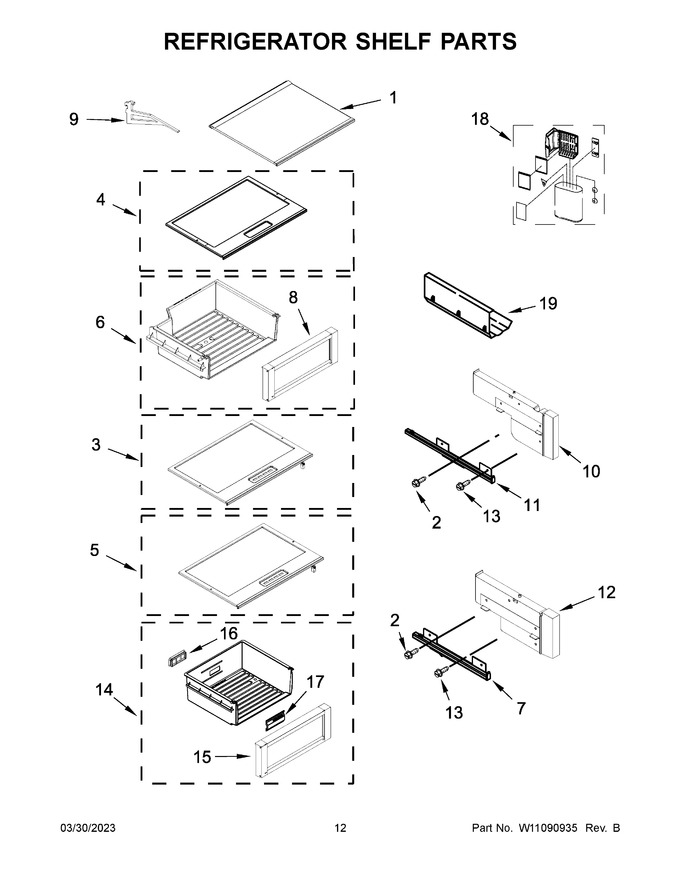

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11777984		Assembly, Shelf   (Replaces: W10187535)				$ 214.92
2	W10215666		Screw				$ 9.53
3	W11370858		Assembly, Crisper Cover   (Replaces: W10789234)				$ 605.35
4	W10837251		Assembly, Meat Pan Cover   (Replaces: W10785391)		Appelez-nous	-
5	W10789233		Assembly, Crisper Cover				$ 389.01
6	W10884286		Assembly, Meat Pan   (Replaces: W10844020)		Appelez-nous	-
7	W10844011		Slide, Meat Pan (left Hand)				$ 320.20
8	W10881982		Front, Meat Pan   (Replaces: W10843805)		Appelez-nous	-
9	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 51.64
10	W10769876		Spacer, Crisper			Immediately	$ 241.24
11	W10844010		Slide, Crisper (left Hand)			Immediately	$ 343.11
12	W10769855		Spacer, Meat		Appelez-nous	-
13	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
14	W10884285		Assembly, Crisper Pan   (Replaces: W10844018)		Appelez-nous	-
15	W10881987		Assembly, Crisper Pan Front   (Replaces: W10843807)		Appelez-nous	-
16	2307810		Duct, Deli Pan		Appelez-nous	-
17	W10787391		Deflector, Air		Appelez-nous	-
18	W11462816		Assembly, Produce Preserver   (Replaces: W10826105)			Immediately	$ 17.15
19	W10701859		Rack, Wine				$ 21.53
11A	W10732303		Slide, Crisper (right Hand)			Immediately	$ 343.11
7A	W10732727		Slide, Meat Pan (right Hand)			Immediately	$ 342.94
