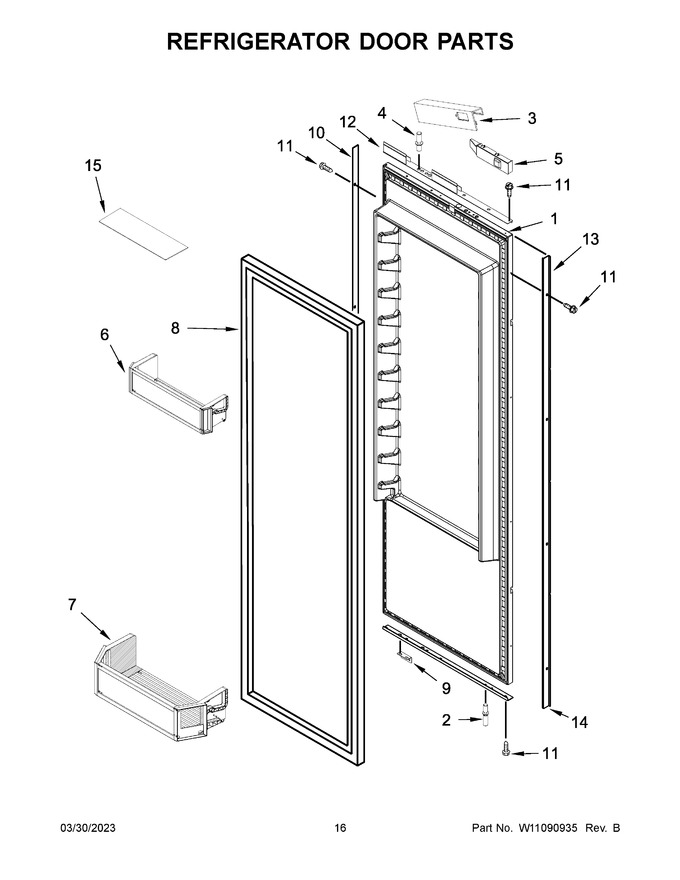

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11827075		Door, Refrigerator   (Replaces: W10775712)				$ 1,085.41
2	W11337869		Pin, Bottom Door   (Replaces: W10234206)				$ 64.91
3	W10775725		Cover, Door (top) (charcoal)			Immediately	$ 156.51
4	W10234194		Pin, Top Door				$ 17.66
5	W10606813		Insert, Door Arm Top (grey)			Immediately	$ 36.38
6	W10529453		Bin, Shallow Door				$ 243.29
7	W11350966		Bin, Gallon Door   (Replaces: W10594311)				$ 385.85
8	W10800809		Gasket, Door (black)   (Replaces: W10764833)			Immediately	$ 351.03
9	W10606841		Bracket, Panel Mounting (grey)				$ 39.81
10	W10749614		Trim, Door (hinge Side) (charcoal)				$ 227.23
11	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
12	W10755238		Trim, Door (top) (charcoal)		Appelez-nous	-
13	W10755284		Trim, Door (handle Side) (charcoal)				$ 222.36
14	W10755288		Trim, Door (bottom) (charcoal)		Appelez-nous	-
15	W10746023		Mat, Door Bin (shallow)		Appelez-nous	-
15A	W10746027		Mat, Door Bin (gallon)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
