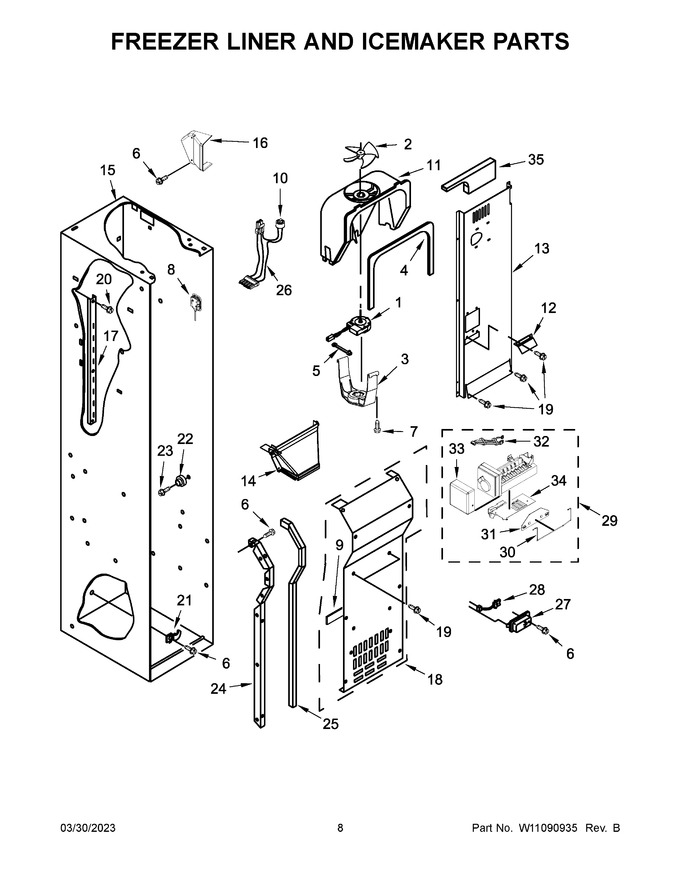

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11671461 | Motor, Fan (Replaces: W10436861) |
|
Immediately | $ 206.52 | ||||
| 2 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 3 | W11671527 | Retainer, Fan Motor (Replaces: W10260421) |
|
$ 24.00 | |||||
| 4 | W10203260 | Gasket, Fan Scroll |
|
$ 75.47 | |||||
| 5 | W11671528 | Grommet, Motor (Replaces: W10321090) |
|
- | |||||
| 6 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 7 | WPW10141604 | Screw (Replaces: W10141604) |
|
$ 8.85 | |||||
| 8 | W11683242 | Assembly, Led Module (Replaces: W10843339) |
|
Immediately | $ 333.96 | ||||
| 9 | W10581988 | Gasket, Evaporator Cover |
|
- | |||||
| 10 | WPW10160570 | Bi-metal, Defrost (Replaces: W10160570) |
|
Immediately | $ 138.98 | ||||
| 11 | W10170114 | Scroll, Fan |
|
- | |||||
| 12 | W10769273 | Deflector, Air |
|
- | |||||
| 13 | W10769276 | Duct, Air |
|
- | |||||
| 14 | W10170112 | Cover, Fan Scroll |
|
- | |||||
| 15 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 16 | W10769274 | Cover, Air Outlet |
|
$ 90.67 | |||||
| 17 | W10775716 | Ladder, Shelf |
|
- | |||||
| 18 | W10748713 | Assembly, Evaporator Cover |
|
- | |||||
| 19 | W10678210 | Screw (black) |
|
$ 19.80 | |||||
| 20 | W10678207 | Screw (Replaces: W10832438) |
|
$ 16.43 | |||||
| 21 | 1112260 | Support, Evaporator |
|
- | |||||
| 22 | W10789219 | Assembly, Shelf Stud (includes Screw) |
|
$ 25.43 | |||||
| 23 | W10784949 | Screw (black) |
|
$ 11.41 | |||||
| 24 | W10135766 | Rail, Evaporator Cover (left Hand) |
|
- | |||||
| 25 | W10782823 | Gasket, Evaporator Cover |
|
- | |||||
| 26 | W11676572 | Harness, Bi-metal Wire (Replaces: W10482187) |
|
$ 131.19 | |||||
| 27 | W10784036 | Cover, Thermistor (Replaces: W10783891) |
|
Immediately | $ 106.96 | ||||
| 28 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 29 | W11700339 | Complete Icemaker Assembly (Replaces: W10790812) |
|
Immediately | $ 427.51 | ||||
| 30 | W11807379 | Arm, Shut Off (Replaces: W10889530) |
|
Immediately | $ 63.21 | ||||
| 31 | W10802358 | Extension, Shut Off Arm |
|
- | |||||
| 32 | W10508673 | Assembly, Ice Maker Wire |
|
$ 123.63 | |||||
| 33 | W10801567 | Cover, Icemaker |
|
- | |||||
| 34 | WP2221231 | Shield, Heat (Replaces: 2221231) |
|
$ 89.33 | |||||
| 35 | 2309283 | Deflector, Air Duct |
|
- | |||||
| 24A | W10141474 | Rail, Evaporator Cover (right Hand) |
|
- |
