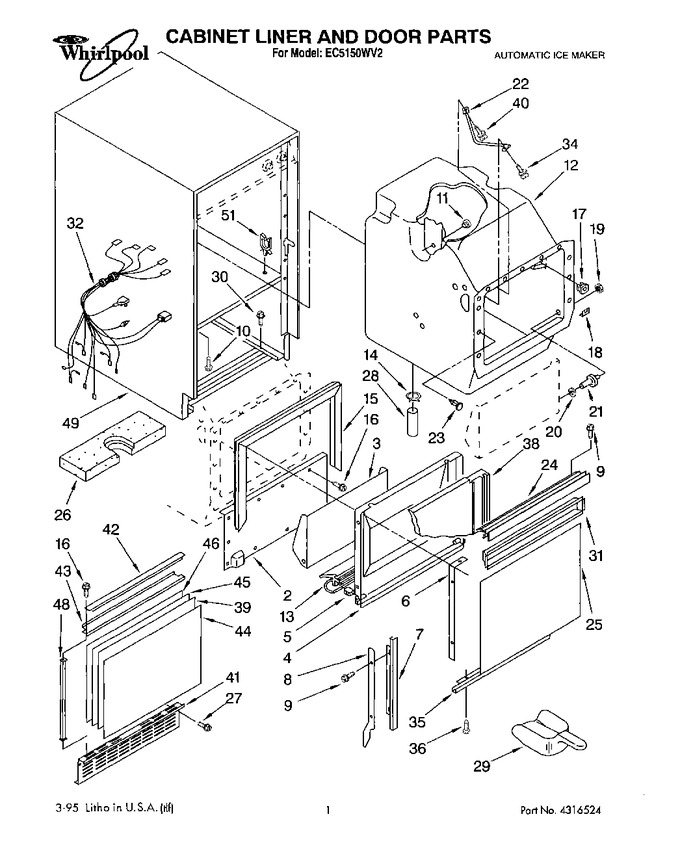

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2175619		Panel, Front		Appelez-nous	-
3	756330		Door, Inner Bin		Appelez-nous	-
4	758655		Liner, Door		Appelez-nous	-
5	593192		Plug, Hinge		Appelez-nous	-
6	593104		Strip, Tapping (2)		Appelez-nous	-
7	758748		Trim, Door Side		Appelez-nous	-
8	593184		Rail (right Side)		Appelez-nous	-
8	593185		Rail (left Side)		Appelez-nous	-
9	681459		Screw, 8-32 X 1/2 (6)		Appelez-nous	-
10	681036		Screw, Harness		Appelez-nous	-
11	596715		Well Nut (3)		Appelez-nous	-
12	756350		Liner		Appelez-nous	-
13	555555		Gasket, Bottom   (Replaces: 2172898)				$ 168.82
14	596023		Clamp (2)		Appelez-nous	-
15	758921		Gasket		Appelez-nous	-
16	WP488729		Screw, No.8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
17	596807		Nut, Molly (2)		Appelez-nous	-
18	758492		Washer, Slotted		Appelez-nous	-
19	681542		Nut, 1/4 Hex		Appelez-nous	-
20	681613		Washer (2)		Appelez-nous	-
21	758220		Stud (2)		Appelez-nous	-
22	593183		Well, Bin Thermostat		Appelez-nous	-
23	596812		Clip, Panel (12)		Appelez-nous	-
24	758622		Handle, Recessed		Appelez-nous	-
25	758746		Door, Panel		Appelez-nous	-
26	756891		Insulation, Bottom, Foam		Appelez-nous	-
27	WP90767		Screw, 8-32 X 3/8   (Replaces: 681167)			Immediately	$ 8.25
28	593577		Connector, Hose		Appelez-nous	-
29	W11420408		Scoop   (Replaces: 585158)				$ 28.61
30	680811		Screw, 10-32 X 3/8		Appelez-nous	-
31	758752		Pocket, Handle		Appelez-nous	-
32	2174781		Wiring Harness, Cabinet		Appelez-nous	-
34	680930		Thumbscrew 10-32 X 5/8		Appelez-nous	-
35	758400		Trim, Door (lower)		Appelez-nous	-
36	681196		Screw (3)		Appelez-nous	-
38	758608		Insulation, Door		Appelez-nous	-
39	758720		Panel, Front (white/black)		Appelez-nous	-
40	681419		Thumbscrew		Appelez-nous	-
41	758769		Grille, Front Panel		Appelez-nous	-
42	758717		Trim, Front (2) (top & Bottom)		Appelez-nous	-
43	2175604		Support, Front		Appelez-nous	-
44	758769		Panel, Grille		Appelez-nous	-
45	758770		Panel, Filler		Appelez-nous	-
46	758771		Panel, Inner		Appelez-nous	-
48	758714		Trim, Front (sides) (2)		Appelez-nous	-
49	2175698		Shell		Appelez-nous	-
51	758844		Retainer, Wire		Appelez-nous	-
	LIT2180633		Use And Care Guide		Appelez-nous	-
	LIT2180606		Wiring Diagram		Appelez-nous	-
	LIT2180623		Tech Sheet		Appelez-nous	-
	LIT2180638		Installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
