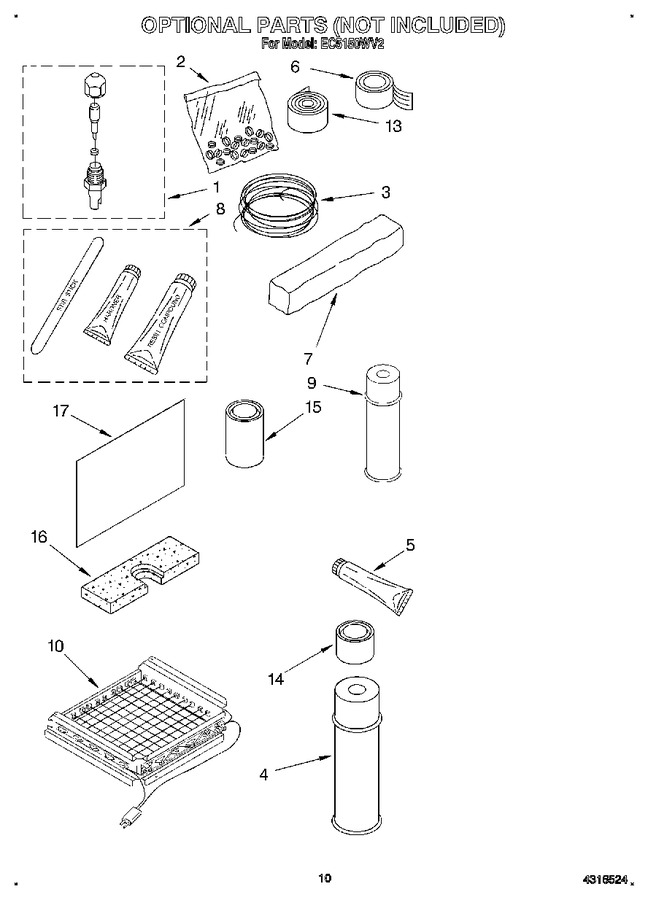

07 - Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | SF5538 | Valve, Access (3/8`` Tube O.d.) (Replaces: 978027) |
|
$ 21.64 | |||||
| 1 | 978030 | Valve, Access (3/4`` Tube O.d.) |
|
$ 130.71 | |||||
| 1 | 978029 | Valve, Access (5/8`` Tube O.d.) |
|
$ 93.85 | |||||
| 1 | 978028 | Valve, Access (1/2`` Tube O.d.) |
|
- | |||||
| 1 | WP978025 | Valve, Access (1/4`` Tube O.d.) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| 1 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | ||||
| 1 | 978026 | Valve Access (5/16`` Tube O.d.) |
|
Immediately | $ 128.09 | ||||
| 2 | 978865 | Seal, Ring (access Valve) (20 - Pack) |
|
- | |||||
| 3 | 47263 | Wire, 25`` Roll (white 12 Ga.) |
|
- | |||||
| 3 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
| 3 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 3 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 3 | 242826 | Wire, 25`` Roll (white 14 Ga.) |
|
- | |||||
| 3 | 47261 | Wire, 25`` Roll (black 12 Ga.) |
|
- | |||||
| 3 | 299885 | Wire, 25` Roll (red 12 Ga.) |
|
- | |||||
| 4 | 813684 | Adhesive, Insulation (24 Oz. Spray) |
|
- | |||||
| 5 | WP279368 | Adhesive, Insulation (2oz Tube) (Replaces: 279368) |
|
Immediately | $ 110.91 | ||||
| 6 | 212643 | Sealer, Permagum 36`` Strips |
|
Immediately | $ 82.13 | ||||
| 7 | 4318168 | Sealer, Permagum 1 Lb. Bar (Replaces: 99344) |
|
Immediately | $ 38.79 | ||||
| 8 | 799833 | Epoxy, Tube (aluminum Repair) |
|
- | |||||
| 9 | 350956 | Paint, Spray (almond, Enamel) |
|
$ 51.44 | |||||
| 9 | 350942 | Paint, Spray (white, Primer) (Replaces: 206922) |
|
$ 89.66 | |||||
| 10 | 2174753 | Grid, Cutter (complete Assembly) |
|
- | |||||
| 13 | 479502 | Tape, Vinyl 36` |
|
$ 66.77 | |||||
| 14 | WP503695 | Sealer, Cork (1 Pint) (Replaces: 503695) |
|
$ 117.94 | |||||
| 15 | WP505587 | Sealer, Mastic (1 Quart) (Replaces: 505587) |
|
Immediately | $ 173.95 | ||||
| 16 | 588490 | Insulation, Kit (bin Bottom) |
|
- | |||||
| 17 | 758745 | Panel, Door (almond & Harvest Gold) |
|
- | |||||
| 17 | 755371 | Panel, Door (almond & Harvest Gold) |
|
- | |||||
| 17 | 755340 | Panel, Door (stainless Steel) |
|
- | |||||
| 17 | 756870 | Panel, Door (walnut) |
|
- | |||||
| 17 | 755364 | Panel, Door (white & Black) |
|
- | |||||
| 17 | 758740 | Panel, Door (toast & Platinum) |
|
- |
