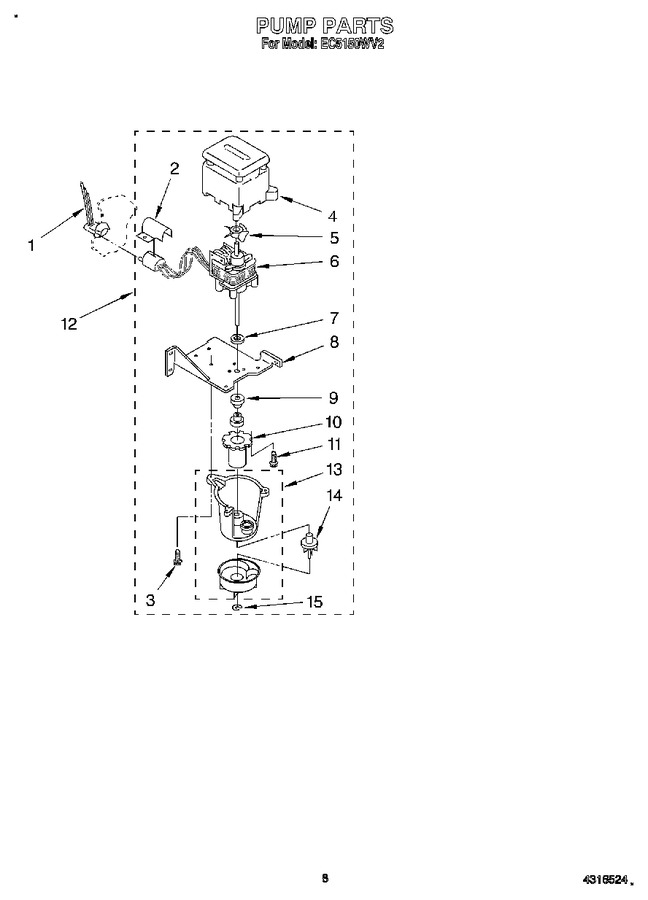

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	569434		Plug, Pump		Appelez-nous	-
2	756124		Cover, Plug		Appelez-nous	-
3	681391		Screw, 8-18 X 3/4		Appelez-nous	-
4	583155		Housing, Motor		Appelez-nous	-
5	587096		Blade, Fan		Appelez-nous	-
6	1127834		Motor, Pump		Appelez-nous	-
7	583424		Washer		Appelez-nous	-
8	756122		Bracket, Pump		Appelez-nous	-
9	596016		Grommet (2)		Appelez-nous	-
10	593229		Sleeve		Appelez-nous	-
11	681390		Screw, 8-32 X 3/8				$ 13.71
12	WP756782		Pump, Water (complete)   (Replaces: 756782)				$ 510.95
13	583518		Pump		Appelez-nous	-
14	583426		Impeller (includes Illus. 15)		Appelez-nous	-
15	681301		Ring, Retaining		Appelez-nous	-
