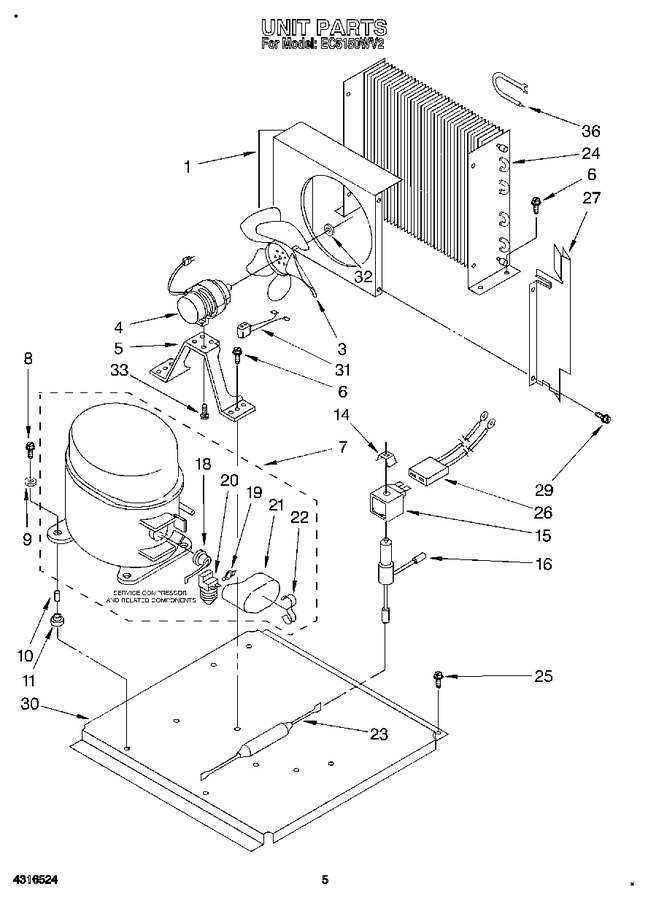

03 - Unit


04 - Escutcheon And Control Components


05 - Pump


06 - Drain Pump


07 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	757955		Shroud		Appelez-nous	-
3	572728		Blade, Fan		Appelez-nous	-
4	1108089		Motor, Fan		Appelez-nous	-
5	560817		Bracket		Appelez-nous	-
6	681305		Screw, 1/4-20 X 1/2 (5)		Appelez-nous	-
7	758593		Compressor,		Appelez-nous	-
8	680233		Screw (4)		Appelez-nous	-
9	595230		Washer (4)		Appelez-nous	-
10	585564		Sleeve (4)		Appelez-nous	-
11	596355		Grommet (4)		Appelez-nous	-
14	564234		Clamp, Coil Retainer		Appelez-nous	-
15	587970		Coil, Solenoid		Appelez-nous	-
16	598086		Valve, Body		Appelez-nous	-
18	758638		Overload (production)		Appelez-nous	-
18	549478		Overload (service)		Appelez-nous	-
19	549086		Spring, Overload (service)		Appelez-nous	-
20	758637		Relay, Start (production)		Appelez-nous	-
20	549337		Relay, Start (service)		Appelez-nous	-
21	1108115		Cover, Terminal (production)		Appelez-nous	-
21	549336		Cover, Terminal (service)		Appelez-nous	-
22	938384		Retainer, Cover (production)		Appelez-nous	-
22	549342		Retainer, Cover (service)		Appelez-nous	-
23	W10843121		Drier   (Replaces: 755649)			Immediately	$ 57.13
24	756299		Condenser		Appelez-nous	-
25	680811		Screw,		Appelez-nous	-
26	587971		Harness, Coil		Appelez-nous	-
27	758811		Deflector, Front		Appelez-nous	-
29	WP488729		Screw, No.8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
30	758810		Base, Unit		Appelez-nous	-
31	585219		Plug, Fan Motor		Appelez-nous	-
32	681650		Washer, Conical		Appelez-nous	-
33	489199		Screw, Self Tap (included With Fan Motor)		Appelez-nous	-
36	756298		Accumulator		Appelez-nous	-
