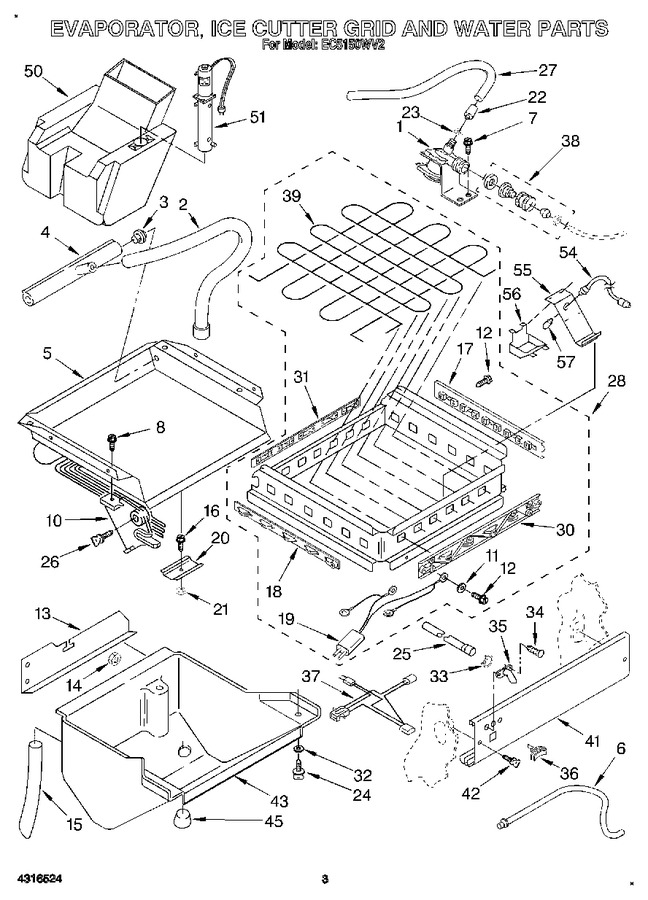

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	759296		Valve, Complete Water				$ 83.03
2	585856		Tube, Plastic		Appelez-nous	-
3	758597		Plug (2)		Appelez-nous	-
4	7016889		Dispenser, Water   (Replaces: 1129798)		Appelez-nous	-
5	758028		Evaporator		Appelez-nous	-
6	759213		Tube, Water Fill Assembly		Appelez-nous	-
7	681305		Screw		Appelez-nous	-
8	WP681414		Screw, 10 - 12 X 1/2   (Replaces: 489049)			Immediately	$ 8.47
10	756564		Bracket, Grid Mounting (2)		Appelez-nous	-
12	N/A		Screw		Appelez-nous	-
13	585853		Shelf, Water Pan		Appelez-nous	-
14	681770		Nut, Cap No.10		Appelez-nous	-
15	759109		Hose, Overflow		Appelez-nous	-
16	596037		Screw, 10-32 X 1/2		Appelez-nous	-
17	N/A		Spacer, Adjustable		Appelez-nous	-
18	N/A		Spacer, Fixed		Appelez-nous	-
19	N/A		Harness, Grid		Appelez-nous	-
20	587662		Clamp		Appelez-nous	-
21	681676		Nut 1/4-20 X 1. 75		Appelez-nous	-
22	4387491		Insert,   (Replaces: 841707)				$ 8.23
23	WP627018		Nut & Sleeve Assembly   (Replaces: 627018)				$ 11.51
24	681419		Thumbscrew		Appelez-nous	-
25	759031		Hose (pump To Faucet)		Appelez-nous	-
26	681611		Thumbscrew		Appelez-nous	-
27	W10823511		Tube, Plastic   (Replaces: 758037)			Immediately	$ 32.41
28	2174753		Grid Assembly		Appelez-nous	-
30	N/A		Spacer, Adjustable		Appelez-nous	-
31	N/A		Spacer, Fixed		Appelez-nous	-
32	681245		Washer (2)		Appelez-nous	-
33	WP596669		Clamp   (Replaces: 489257)			Immediately	$ 8.82
34	489256		Clip		Appelez-nous	-
35	WP4388152		Fitting, Water Dispenser   (Replaces: 2155037)				$ 290.25
36	759028		Lever, Water Disp.		Appelez-nous	-
37	759027		Harness, Water Dispenser		Appelez-nous	-
38	2165477		Adapter		Appelez-nous	-
39	N/A		Wire, Grid Cutter		Appelez-nous	-
41	759025		Panel, Grid		Appelez-nous	-
42	681534		Thumbscrew, 10-32 X 5/8				$ 11.33
43	756659		Pan		Appelez-nous	-
45	759043		Stopper, Pan		Appelez-nous	-
50	759022		Tank, Water		Appelez-nous	-
51	759023		Pump, Dispensing		Appelez-nous	-
54	758488		Harness, Light		Appelez-nous	-
55	758490		Bracket, Light		Appelez-nous	-
56	758489		Shield, Light		Appelez-nous	-
57	745362		Bulb		Appelez-nous	-
