SELECT A DIAGRAM

01 - Cover Sheet


02 - Door And Panel Parts

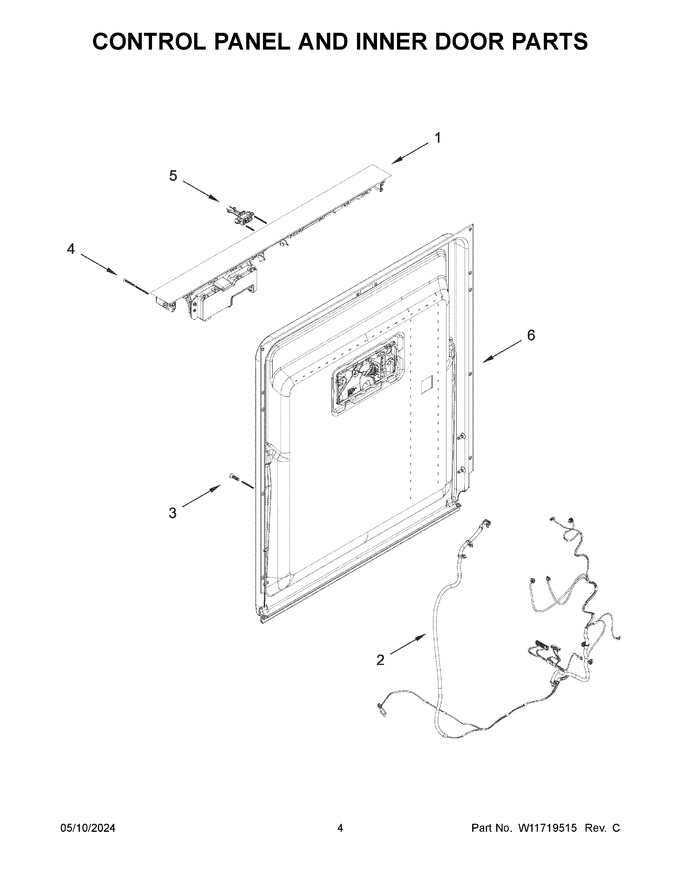

03 - Control Panel And Inner Door Parts


04 - Tub And Frame Parts


05 - Pump, Washarm And Motor Parts


06 - Upper Wash And Rinse Parts


07 - Upper Rack And Track Parts


08 - Lower Rack Parts


09 - Third Level Rack And Track Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11693834		Console Assembly (includes Insert) (black)   (Replaces: W11524112)			Immediately	$ 387.10
2	W11693812		Wiring Harness, Inner Door   (Replaces: W11592240)		Appelez-nous	-
3	W11729111		Screw   (Replaces: W10941960)				$ 14.71
4	W11729110		Screw   (Replaces: W11381263)		Appelez-nous	-
5	W11412299		Latch Assembly (includes Switch)   (Replaces: W11091934)			Immediately	$ 29.70
6	W11723342		Inner Door Assembly (includes Soap Dispenser)   (Replaces: W11715716)				$ 581.48

    View Diagram in Separate Window       Print Part List
