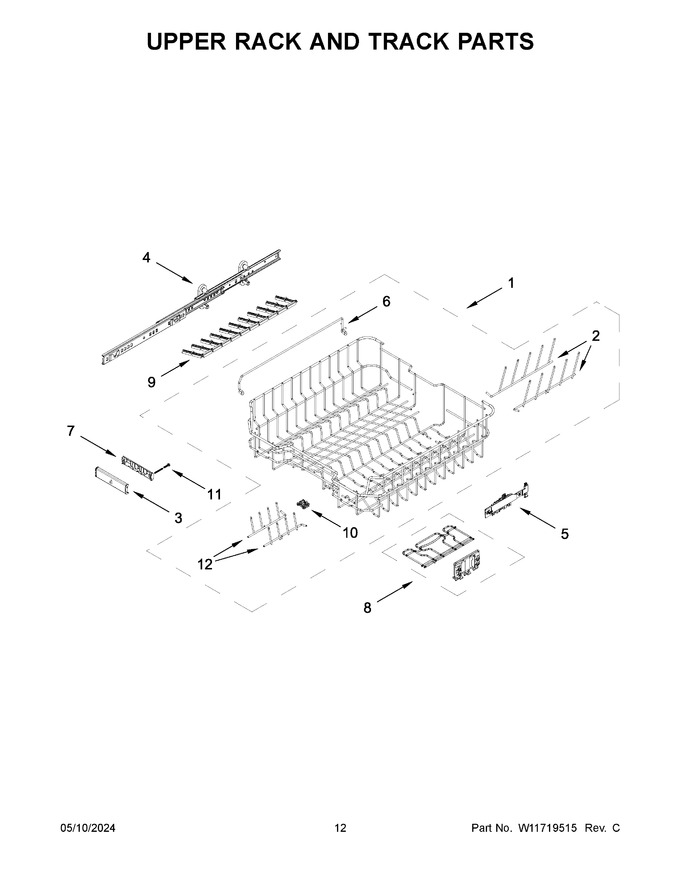

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11701294		Dishrack, Upper   (Replaces: W11534669)		Appelez-nous	-
2	W11701298		Tine Row, Back (left)   (Replaces: W11534673)		Appelez-nous	-
3	W11701301		Handle, Front   (Replaces: W11590244)		Appelez-nous	-
4	W11701281		Assembly, Track & Mount (left)   (Replaces: W11549966)				$ 156.51
5	W11693821		Adjustment Assembly (left)   (Replaces: W11548662)				$ 105.16
6	W11698573		Support, Tine Row   (Replaces: W11521643)		Appelez-nous	-
7	W11701287		Handle, Rear   (Replaces: W11590236)		Appelez-nous	-
8	W11701320		Assembly, Cupshelf   (Replaces: W11618606)		Appelez-nous	-
9	W11697498		Tine Row, Fold Down   (Replaces: W11538488)		Appelez-nous	-
10	W11690826		Clip, Tine Row   (Replaces: W11315981)				$ 25.25
11	W11698986		Screw   (Replaces: W11337336)				$ 87.74
12	W11701296		Tine Row, Front (left)   (Replaces: W11521627)		Appelez-nous	-
12A	W11701297		Tine Row, Front (right)   (Replaces: W11521631)		Appelez-nous	-
2A	W11701299		Tine Row, Back (right)   (Replaces: W11534678)		Appelez-nous	-
4A	W11701282		Assembly, Track & Mount (right)   (Replaces: W11549967)		Appelez-nous	-
5A	W11693822		Adjustment Assembly (right)   (Replaces: W11548661)				$ 105.16
