SELECT A DIAGRAM

01 - Cover Sheet


02 - Door And Panel Parts


03 - Control Panel And Inner Door Parts


04 - Tub And Frame Parts

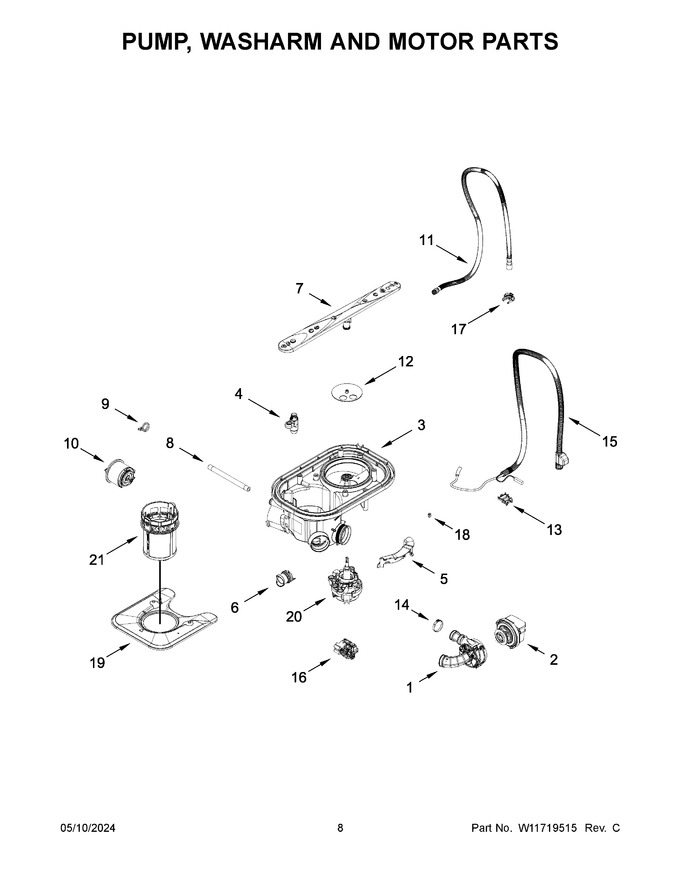

05 - Pump, Washarm And Motor Parts


06 - Upper Wash And Rinse Parts


07 - Upper Rack And Track Parts


08 - Lower Rack Parts


09 - Third Level Rack And Track Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11690626		Heater, Pump   (Replaces: W11630727)			Immediately	$ 286.98
2	W11690628		Motor, Pump   (Replaces: W11630725)			Immediately	$ 417.53
3	W11690640		Sump (includes Seal)   (Replaces: W11560668)				$ 250.56
4	W11690638		Drain Vent Assembly   (Replaces: W11559823)				$ 73.17
5	W11690639		Diffuser, Inlet   (Replaces: W11560657)				$ 27.23
6	W11693619		Check Valve, Drain   (Replaces: W11560834)				$ 19.47
7	W11699038		Wash Arm Assembly   (Replaces: W11528063)				$ 160.08
8	W11698605		Hose, Pump Inlet   (Replaces: W11008962)				$ 86.70
9	WP596669		Clamp, Hose   (Replaces: W10096851)			Immediately	$ 8.82
10	W11693603		Motor, Drain   (Replaces: W11631981)			Immediately	$ 147.85
11	W11693602		Hose, Drain   (Replaces: W11586395)				$ 123.02
12	W11693604		Disc, Diverter   (Replaces: W11175586)		Appelez-nous	-
13	W11699045		Housing, Connector   (Replaces: W10942827)		Appelez-nous	-
14	W10783615		Clamp, Hose   (Replaces: W11122851)			Immediately	$ 18.60
15	W11693810		Hose, Inlet   (Replaces: W11551555)			Immediately	$ 169.74
16	W11410464		Indicator, Optical Wash   (Replaces: W11126174)			Immediately	$ 30.22
17	W11693621		Clip, Hose   (Replaces: W11626817)		Appelez-nous	-
18	W11690844		Clamp, Hose   (Replaces: W11015323)			Immediately	$ 10.85
19	W11698630		Grate   (Replaces: W11445183)		Appelez-nous	-
20	W11693837		Diverter Valve Motor   (Replaces: W11543924)			Immediately	$ 115.44
21	W11698610		Filter   (Replaces: W11559846)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
