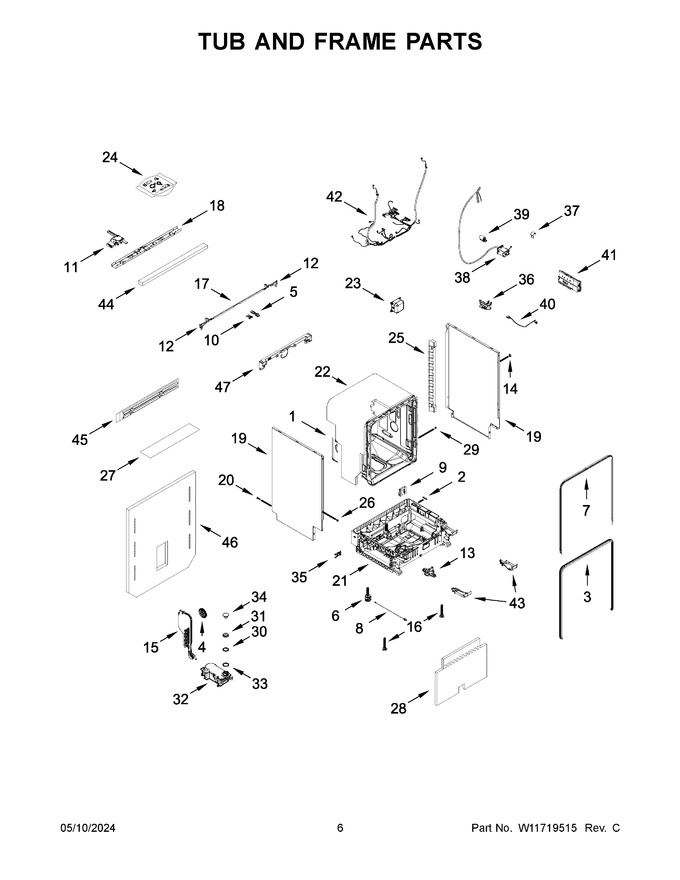

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARIA17CA5C5D5FD35750732AA32B1D13FC1 | Tub (not Serviced) |
|
- | |||||
| 2 | W11690545 | Pad, Tub Support (Replaces: W11671752) |
|
- | |||||
| 3 | W11690846 | Gasket, Tub (Replaces: W11658880) |
|
Immediately | $ 112.44 | ||||
| 4 | W11693614 | Nut, Air Break (Replaces: W11236521) |
|
- | |||||
| 5 | W11693599 | Strike, Latch (Replaces: W11314779) |
|
Immediately | $ 28.10 | ||||
| 6 | W11696091 | Assembly, Leveling Leg (rear) (Replaces: W11316238) |
|
Immediately | $ 28.56 | ||||
| 7 | W11693589 | Retainer, Tub Gasket (Replaces: W11554391) |
|
Immediately | $ 84.06 | ||||
| 8 | W11696093 | Rod, Foot Adjustment (rear) (Replaces: W11325471) |
|
Immediately | $ 55.65 | ||||
| 9 | W11690570 | Holder, Damper (Replaces: W11668893) |
|
- | |||||
| 10 | W11693590 | Cover, Door Opening (Replaces: W11317043) |
|
Immediately | $ 28.99 | ||||
| 11 | W11693591 | Assembly, Door Opening (Replaces: W11590760) |
|
Immediately | $ 185.61 | ||||
| 12 | W11697221 | Cover, Tub Corner (left) (Replaces: W11316692) |
|
- | |||||
| 13 | W11690660 | Float Switch (Replaces: W11602936) |
|
Immediately | $ 78.74 | ||||
| 14 | W11697220 | Plug, Tub (Replaces: W11321022) |
|
$ 14.31 | |||||
| 15 | W11693838 | Air Break (Replaces: W11568183) |
|
$ 103.55 | |||||
| 16 | W11696092 | Leg, Leveling (front) (Replaces: W11325130) |
|
Immediately | $ 17.31 | ||||
| 17 | W11697223 | Cover, Top (Replaces: W11317036) |
|
- | |||||
| 18 | W11697225 | Crossbar, Front Frame (Replaces: W11306174) |
|
- | |||||
| 19 | W11701674 | Side Panel (left) (Replaces: W11355600) |
|
$ 165.49 | |||||
| 20 | W11697243 | Screw (Replaces: W10986499) |
|
- | |||||
| 21 | W11690567 | Assembly, Base |
|
$ 219.12 | |||||
| 22 | W11697224 | Shield, Tub Sound (Replaces: W11564606) |
|
- | |||||
| 23 | W11695958 | Assembly, Junction Box (Replaces: W11643567) |
|
Immediately | $ 146.19 | ||||
| 24 | W11696041 | Miscellaneous Parts Bag |
|
$ 202.71 | |||||
| 25 | W11697245 | Spacer, Side Panel (Replaces: W11525808) |
|
- | |||||
| 26 | W11697248 | Screw (Replaces: W11350847) |
|
$ 15.35 | |||||
| 27 | W11690851 | Strip, Anti-condensation (Replaces: W11676404) |
|
$ 71.38 | |||||
| 28 | W11699545 | Insulation, Floor (Replaces: W11626034) |
|
- | |||||
| 29 | W11696094 | Button, Tub (Replaces: W11656505) |
|
- | |||||
| 30 | W11698540 | Nut, Softner (Replaces: W11227921) |
|
- | |||||
| 31 | W11698541 | Cap, Salt (Replaces: W11227934) |
|
- | |||||
| 32 | W11698542 | Softener, Water (Replaces: W11546882) |
|
- | |||||
| 33 | W11698543 | Seal, Softener (Replaces: W11224085) |
|
- | |||||
| 34 | W11698545 | Funnel, Salt (Replaces: W11509486) |
|
$ 22.18 | |||||
| 35 | W11690633 | Plate, In/out Hoses (Replaces: W11686061) |
|
- | |||||
| 36 | W11693747 | Jumper, Rfi To Control (Replaces: W11545951) |
|
- | |||||
| 37 | W11698572 | Spring, Grounding (Replaces: W10943118) |
|
- | |||||
| 38 | W11696044 | Power Cord Assembly (Replaces: W11578108) |
|
Immediately | $ 200.75 | ||||
| 39 | W11693746 | Filter, Rfi (Replaces: W11418782) |
|
$ 74.47 | |||||
| 40 | W11690657 | Jumper Harness, Service Port (Replaces: W11646878) |
|
Immediately | $ 17.84 | ||||
| 41 | W11696408 | Control, Electronic |
|
Immediately | $ 529.22 | ||||
| 42 | W11693811 | Wiring Harness, Main (Replaces: W11609316) |
|
$ 246.35 | |||||
| 43 | W11690634 | Channel, Overflow (left) (Replaces: W11684708) |
|
- | |||||
| 44 | W11690847 | Foam, Crossbar (Replaces: W11676843) |
|
- | |||||
| 45 | W11693847 | Kit, Side Cover Installation (Replaces: W11673775) |
|
$ 132.73 | |||||
| 46 | W11698664 | Insulation, Back (Replaces: W11600452) |
|
- | |||||
| 47 | W11690825 | Crossbar, Upper Rear (Replaces: W11664579) |
|
- | |||||
| 12A | W11697222 | Cover, Tub Corner (right) (Replaces: W11316688) |
|
- | |||||
| 19A | W11701674 | Side Panel (right) (Replaces: W11355598) |
|
$ 165.49 | |||||
| 43A | W11690635 | Channel, Overflow (right) (Replaces: W11684709) |
|
- |
