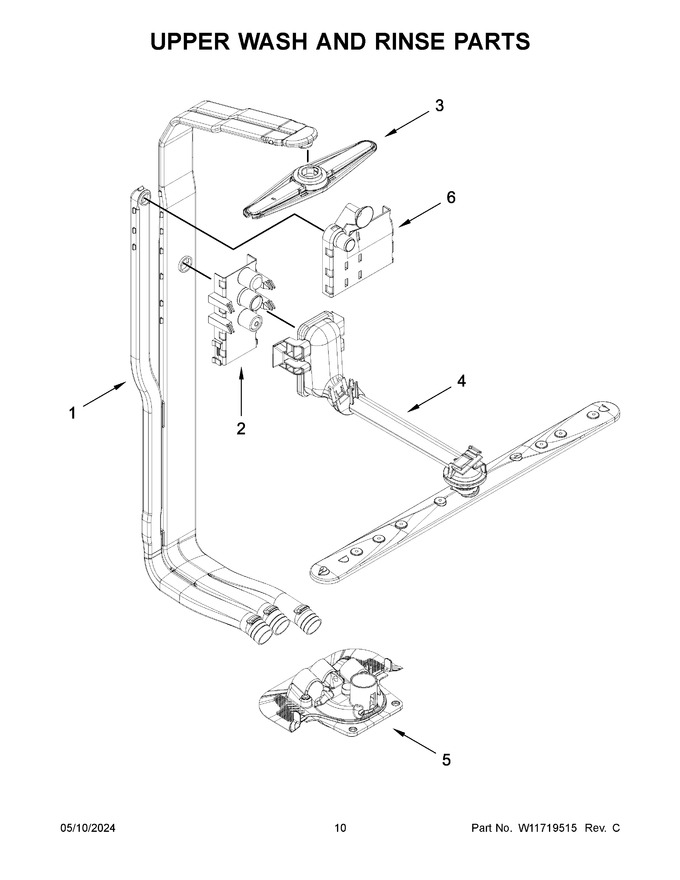

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11699040		Feed Tube Assembly   (Replaces: W11668592)		Appelez-nous	-
2	W11698627		Retainer, Docking (2nd Level)   (Replaces: W11522213)				$ 15.12
3	W11698613		Sprayarm, Third Level   (Replaces: W11522201)				$ 62.52
4	W11690841		Upper Sprayarm Assembly   (Replaces: W11680190)		Appelez-nous	-
5	W11699046		Cover, Diverter   (Replaces: W11602499)		Appelez-nous	-
6	W11699039		Retainer, Docking (3rd Level)   (Replaces: W11221214)		Appelez-nous	-
