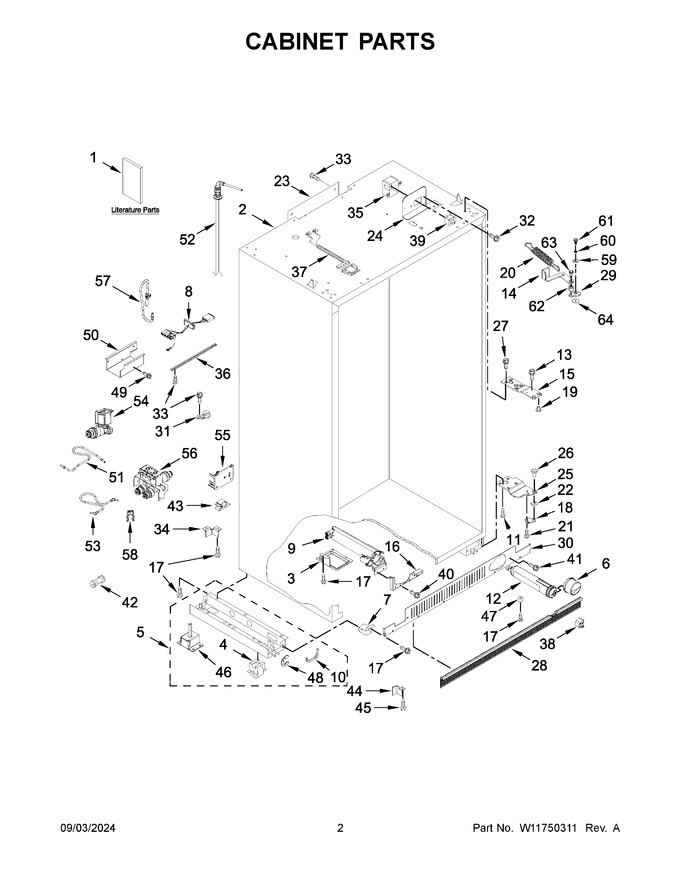

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11504344 | Owner's Manual |
|
- | |||||
| 2 | ARIBD05C36FE9C41F5CCC5AA149AF8AA604 | Cabinet (not Serviced) |
|
- | |||||
| 3 | 2318189 | Tray, Filter Drip |
|
$ 148.73 | |||||
| 4 | WPW10138054 | Roller Assembly (Replaces: W10138054) |
|
$ 43.18 | |||||
| 5 | W10860229 | Assembly, Support Base (left Hand) (Replaces: W10279275) |
|
$ 363.65 | |||||
| 6 | W11238395 | Cap, Water Filter (black) (Replaces: W10797527) |
|
Immediately | $ 48.27 | ||||
| 7 | W10839844 | Bracket, Grill Mounting (Replaces: 2307640) |
|
$ 41.20 | |||||
| 8 | W11421923 | Harness, Water Valve |
|
$ 166.40 | |||||
| 9 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 171.96 | ||||
| 10 | 2307584 | Grommet, Crossover Tube |
|
$ 23.40 | |||||
| 11 | 3400525 | Screw |
|
$ 12.83 | |||||
| 12 | EDR3RXD1B | Filter, Water (Replaces: W10121146) |
|
Immediately | $ 49.99 | ||||
| 13 | WP8281164 | Screw (stainless) (Replaces: 8281164) |
|
$ 10.79 | |||||
| 14 | W11298172 | Arm, Door Closer Extension (left Hand) (Replaces: W10709785) |
|
Immediately | $ 83.27 | ||||
| 15 | 2257644 | Hinge, Top |
|
$ 177.98 | |||||
| 16 | W11755873 | Bracket, Filter (Replaces: W11695780) |
|
$ 76.50 | |||||
| 17 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.83 | ||||
| 18 | WP2004994 | Lock, Bushing (Replaces: 2004994) |
|
Immediately | $ 7.96 | ||||
| 19 | W11500952 | Bushing, Top Hinge (Replaces: W10484913) |
|
Immediately | $ 33.09 | ||||
| 20 | W11805224 | Spring, Door Closure (green) (Replaces: 2221242) |
|
- | |||||
| 21 | W11769878 | Screw (Replaces: 3400230) |
|
$ 12.16 | |||||
| 22 | WP489236 | Ring, Bushing Retaining (Replaces: 2005008) |
|
Immediately | $ 12.17 | ||||
| 23 | 2215612 | Cover, Air Duct |
|
- | |||||
| 24 | W11610480 | Bracket, Switch (left Hand) |
|
$ 72.85 | |||||
| 25 | W10527053 | Hinge, Bottom (left Hand) (Replaces: 2006779) |
|
$ 130.70 | |||||
| 26 | WP2302876 | Bushing, Adjustable (Replaces: 2302876) |
|
Immediately | $ 86.40 | ||||
| 27 | W11721628 | Screw (Replaces: W11370632) |
|
Immediately | $ 14.08 | ||||
| 28 | WPW10188549 | Skirt, Bottom Grille (black) (Replaces: W10188549) |
|
$ 137.33 | |||||
| 29 | WP2320509 | Stop, Door (Replaces: 2320509) |
|
$ 28.52 | |||||
| 30 | W11739147 | Grille, Bottom (black) (Replaces: W11695787) |
|
Immediately | $ 202.30 | ||||
| 31 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.99 | |||||
| 32 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 10.72 | ||||
| 33 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 34 | 2006617 | Bracket, Base Support (rear) |
|
- | |||||
| 35 | W11756944 | Cover, Switch (Replaces: W11695310) |
|
- | |||||
| 36 | 2320559 | Support, Valve |
|
$ 88.79 | |||||
| 37 | W10780213 | Assembly, Switch Wire |
|
$ 124.68 | |||||
| 38 | WP2260503B | Button, Water Filter (black) (Replaces: 2260503B) |
|
$ 72.78 | |||||
| 39 | W11396033 | Switch, Rocker (refrigerator) (Replaces: W10847848) |
|
Immediately | $ 37.30 | ||||
| 40 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.19 | ||||
| 41 | WP489464 | Screw (Replaces: W10005050) |
|
Immediately | $ 7.83 | ||||
| 42 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 43 | W10663352 | Clip |
|
$ 20.87 | |||||
| 44 | 2006616 | Bracket, Support (left Hand) |
|
$ 91.53 | |||||
| 45 | WPW10141604 | Screw (Replaces: W10141604) |
|
$ 8.43 | |||||
| 46 | 2005032 | Leveler, Adjustable |
|
Immediately | $ 200.07 | ||||
| 47 | 2005433 | Spacer |
|
$ 23.33 | |||||
| 48 | 2006841 | Ring, Retainer |
|
$ 92.66 | |||||
| 49 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.86 | ||||
| 50 | W11439643 | Shield, Water Valve |
|
$ 119.87 | |||||
| 51 | W11634221 | Tube, Water (Replaces: W11449524) |
|
$ 88.35 | |||||
| 52 | W11212166 | Fitting, Water (Replaces: W10357286) |
|
Immediately | $ 38.98 | ||||
| 53 | W11663448 | Tube, Water Filter (Replaces: W11450887) |
|
$ 55.17 | |||||
| 54 | W11246413 | Valve, Isolation (no Flow Washer) (Replaces: W10578757) |
|
Immediately | $ 132.98 | ||||
| 55 | W10847867 | Bracket, Water Valve (Replaces: W10237915) |
|
$ 76.90 | |||||
| 56 | WPW10279866 | Assembly, Dual Valve (Replaces: W10279866) |
|
Immediately | $ 138.28 | ||||
| 57 | W11634223 | Waterline (Replaces: W11447812) |
|
Immediately | $ 129.96 | ||||
| 58 | W10782424 | Locking Ring(5/16") |
|
- | |||||
| 59 | W11089212 | Washer (Replaces: 3392186) |
|
$ 9.67 | |||||
| 60 | WP8533914 | Washer, Lock (Replaces: 8533914) |
|
Immediately | $ 4.49 | ||||
| 61 | W11354227 | Screw (Replaces: W10761279) |
|
$ 14.07 | |||||
| 62 | WP2316859 | Bushing, Extension Arm (Replaces: 2316859) |
|
Immediately | $ 51.62 | ||||
| 63 | W11177574 | Screw (Replaces: W10485630) |
|
$ 14.13 | |||||
| 64 | W11171640 | Cover, Hinge Pin (Replaces: W11103275) |
|
Immediately | $ 31.08 | ||||
| 14A | W10847927 | Arm, Door Closer Extension (right Hand) (Replaces: W10728112) |
|
$ 95.15 | |||||
| 1A | W11648177 | Energy Guide |
|
- | |||||
| 1B | W11494196 | Tech Sheet |
|
- | |||||
| 24A | W11610479 | Bracket, Switch (right Hand) |
|
- | |||||
| 25A | WP2006780 | Hinge, Bottom (right Hand) (Replaces: 2006780) |
|
$ 285.08 | |||||
| 39A | W11291138 | Switch, Rocker (Replaces: W10847852) |
|
Immediately | $ 36.67 | ||||
| 44A | 2006556 | Bracket, Support (right Hand) |
|
$ 37.20 | |||||
| 58A | W10782423 | Locking Ring (1/4") |
|
$ 23.21 | |||||
| 5A | W10860448 | Assembly, Support Base (right Hand) (Replaces: W10138423) |
|
Immediately | $ 364.76 |
