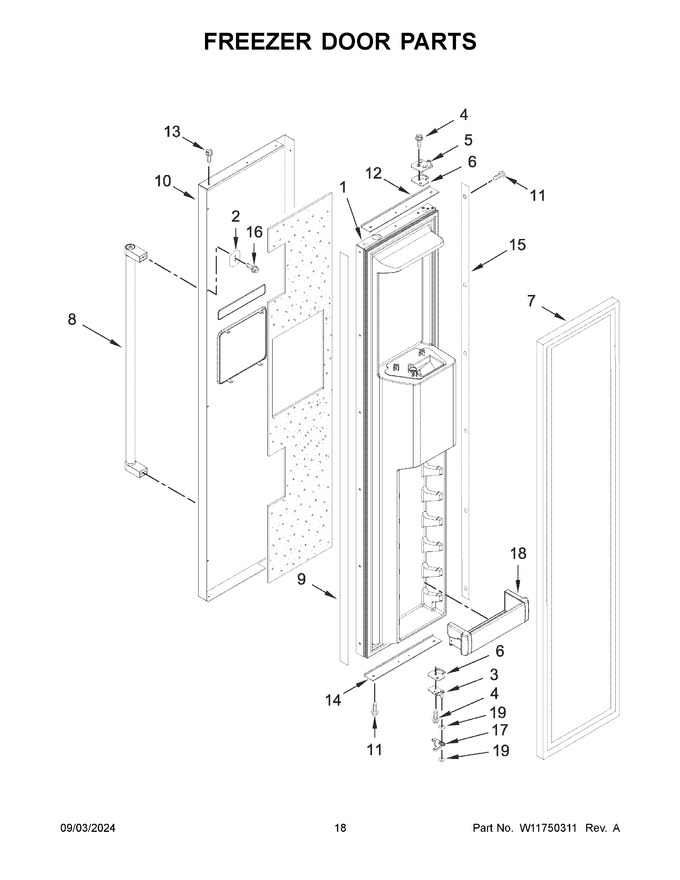

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11827078 | Door, Freezer (Replaces: W11502200) |
|
$ 1,055.49 | |||||
| 2 | W10127710 | Plate, Handle Door |
|
Immediately | $ 25.94 | ||||
| 3 | W11752085 | Assembly, Hinge (bottom) (Replaces: 2302879) |
|
$ 63.07 | |||||
| 4 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 5 | W11673500 | Assembly, Hinge (top) (Replaces: W10485980) |
|
Immediately | $ 108.07 | ||||
| 6 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 7 | W11625082 | Gasket, Door (grey) (Replaces: W10761964) |
|
$ 380.50 | |||||
| 8 | W10783284 | Handle, Door (stainless) (Replaces: W10541592) |
|
$ 216.71 | |||||
| 9 | W10758113 | Spacer, Handle Side Door |
|
- | |||||
| 10 | W11633388 | Skin, Door (stainless) Filler (not Serviced-included With Skin) (Replaces: W11441142) |
|
- | |||||
| 11 | W11748041 | Screw (stainless) (Replaces: W11672062) |
|
- | |||||
| 12 | W10758117 | Spacer, Door Skin (top) |
|
- | |||||
| 13 | W10759522 | Screw (stainless) (Replaces: 488568) |
|
$ 8.24 | |||||
| 14 | W10758119 | Spacer, Door Skin Bottom |
|
$ 49.77 | |||||
| 15 | W10756209 | Spacer, Hinge Side Door |
|
- | |||||
| 16 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 17 | W11700297 | Cover, Bottom Gap (Replaces: W10482554) |
|
Immediately | $ 38.28 | ||||
| 18 | W11408939 | Bin, Shallow Door |
|
Immediately | $ 181.06 | ||||
| 19 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.76 |
