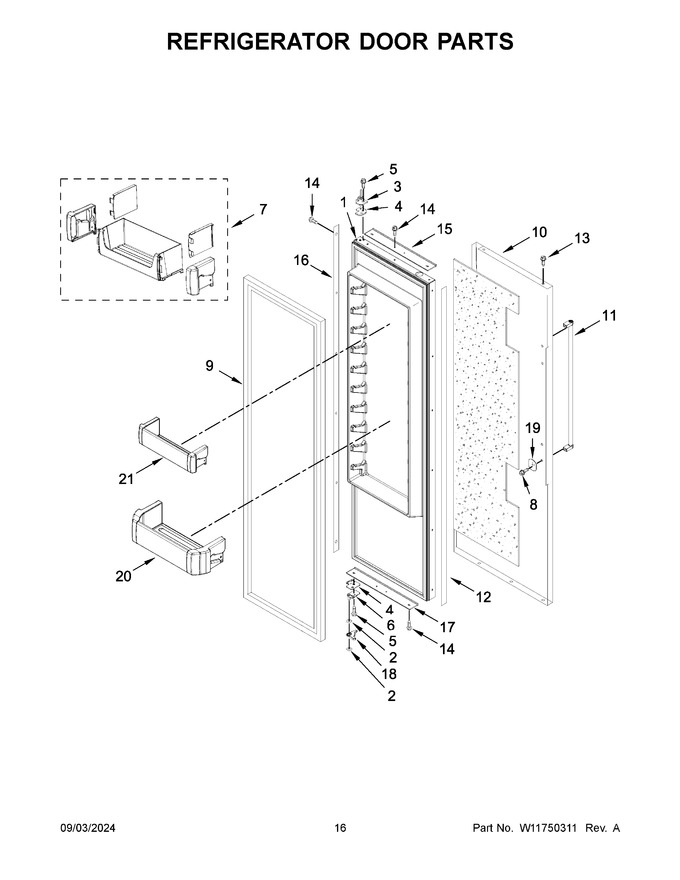

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11633393		Door, Refrigerator   (Replaces: W11576682)			Immediately	$ 1,448.23
2	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
3	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 108.07
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	2302878		Assembly, Hinge (bottom)			Immediately	$ 91.01
7	W11631253		Door Bin Assembly, Top   (Replaces: W11610620)				$ 137.24
8	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
9	W11627244		Gasket, Door (grey)   (Replaces: W10764832)				$ 377.97
10	W11797607		Skin, Door (stainless) Filler (not Serviced-included With Skin)   (Replaces: W10859716)		Appelez-nous	-
11	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 216.71
12	W10758113		Spacer, Handle Side Door		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
14	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
15	W10761896		Spacer, Door Skin (top)		Appelez-nous	-
16	W10756209		Spacer, Hinge Side Door		Appelez-nous	-
17	W10761936		Spacer, Door Skin Bottom		Appelez-nous	-
18	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
19	W10127710		Plate, Handle Door			Immediately	$ 25.94
20	W11408929		Bin, Gallon Door				$ 183.44
21	W11408937		Bin, Shallow Door				$ 181.95
