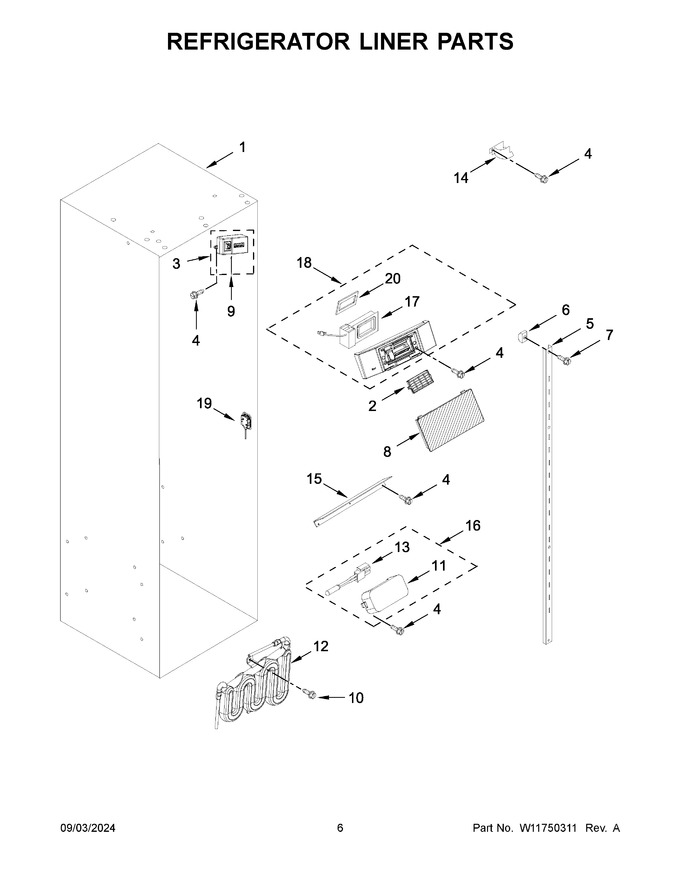

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARIAC1E7B561513C5BE406C5B6330205809 | Liner (not Serviced) |
|
- | |||||
| 2 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 3 | W11447198 | Assembly, Air Diffuser Cover |
|
$ 132.62 | |||||
| 4 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 5 | W11625043 | Ladder, Shelf (Replaces: W11481390) |
|
- | |||||
| 6 | 520965 | Support, Ladder |
|
$ 31.35 | |||||
| 7 | W10808291 | Screw |
|
- | |||||
| 8 | W11480888 | Cover, Air Diffuser |
|
- | |||||
| 9 | WP2302937 | Thermistor (Replaces: 2302937) |
|
$ 88.41 | |||||
| 10 | W10141518 | Screw |
|
$ 9.54 | |||||
| 11 | W10609678 | Cover, Thermistor |
|
$ 39.19 | |||||
| 12 | W11825825 | Reservoir, Water (Replaces: W11463083) |
|
$ 139.14 | |||||
| 13 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 14 | W11443086 | Guard, Air Return |
|
- | |||||
| 15 | W10782834 | Diverter, Crisper Cover |
|
Immediately | $ 65.18 | ||||
| 16 | W11625042 | Assembly, Thermistor (Replaces: W11550866) |
|
Immediately | $ 66.74 | ||||
| 17 | WP2220377 | Baffle, Air (Replaces: 2220377) |
|
Immediately | $ 381.05 | ||||
| 18 | W11630597 | Assembly, Air Diffuser (Replaces: W11449562) |
|
Immediately | $ 349.91 | ||||
| 19 | W11484836 | Assembly, Led Module (Replaces: W11229041) |
|
Immediately | $ 27.01 | ||||
| 20 | W11480891 | Gasket, Air Baffle |
|
$ 30.11 |
