SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner And Air Flow Parts


06 - Icemaker And Ice Container Parts

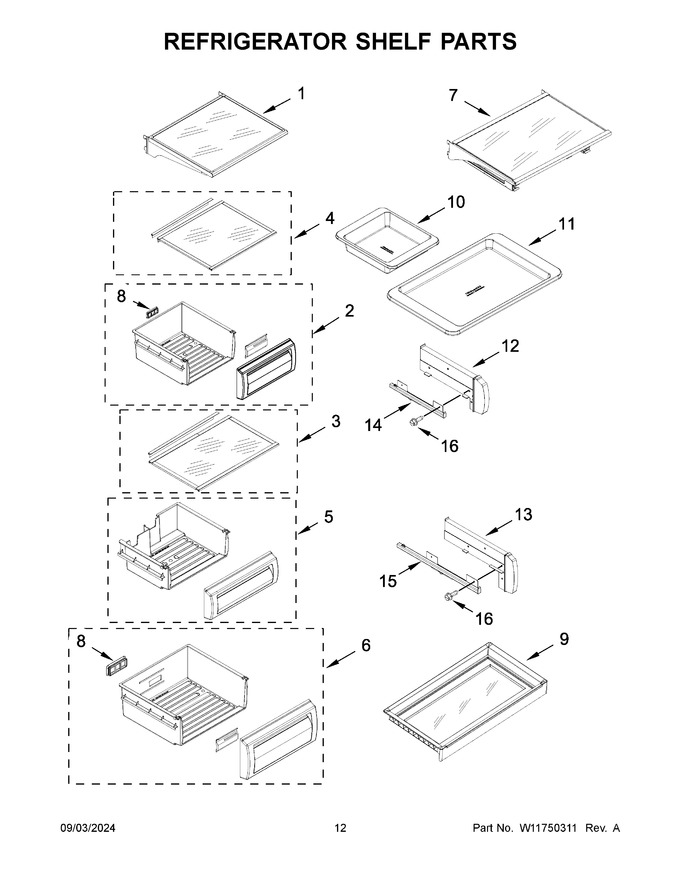

07 - Refrigerator Shelf Parts


08 - Freezer Shelf Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Dispenser Parts


12 - Top Grille And Unit Cover Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11630863		Shelf Assembly, Fixed   (Replaces: W11410512)				$ 194.75
2	W11755567		Pan Assembly, Crisper   (Replaces: W11740834)		Appelez-nous	-
3	W11630862		Pan Cover Assembly, Meat   (Replaces: W11441724)		Appelez-nous	-
4	W11630861		Pan Cover Assembly, Crisper   (Replaces: W11441726)		Appelez-nous	-
5	W11448427		Pan Assembly, Meat		Appelez-nous	-
6	W11755564		Pan Assembly, Cool Control Crisper   (Replaces: W11740830)		Appelez-nous	-
7	W11630864		Shelf Assembly, Bakeware   (Replaces: W11408074)				$ 361.92
8	2307810		Duct, Deli Pan		Appelez-nous	-
9	W11631250		Shelf Assembly, Platter   (Replaces: W11611418)				$ 414.64
10	W11633366		Pan, Cake   (Replaces: W11522384)				$ 72.22
11	W11633367		Sheet, Baking   (Replaces: W11522386)				$ 70.51
12	W11410122		Spacer, Crisper (left Hand)		Appelez-nous	-
13	W11410124		Spacer, Meat Pan (left Hand)		Appelez-nous	-
14	2302956		Slide, Crisper (left Hand)				$ 298.73
15	W10844011		Slide, Meat Pan (left Hand)				$ 320.20
16	WP8533928		Screw (left Hand)   (Replaces: 8533928)			Immediately	$ 8.26
12A	W11410123		Spacer, Crisper (right Hand)		Appelez-nous	-
13A	W11410125		Spacer, Meat Pan (right Hand)		Appelez-nous	-
14A	2302957		Slide, Crisper (right Hand)				$ 228.33
15A	W10732727		Slide, Meat Pan (right Hand)			Immediately	$ 342.94
16A	W11830745		Screw (right Hand)   (Replaces: 8533929)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
