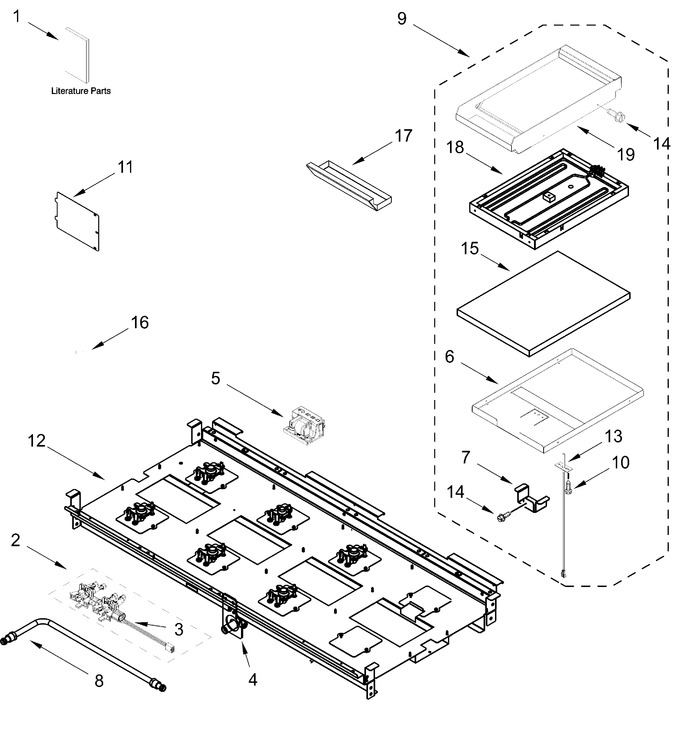

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11381267 | Valve Manifold Assembly (Replaces: W11183720) |
|
$ 359.84 | |||||
| 3 | W11344433 | Switch, Harness (Replaces: W10903728) |
|
$ 191.56 | |||||
| 4 | W11320153 | Bracket, Manifold (Replaces: W11121194) |
|
$ 79.97 | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 81.60 | ||||
| 6 | W11330430 | Tray, Griddle Insulation |
|
- | |||||
| 7 | W11319226 | Bracket, Griddle-rtd (Replaces: W11121384) |
|
- | |||||
| 8 | W11397967 | Tube, Manifold Supply (Replaces: W10892809) |
|
$ 187.98 | |||||
| 9 | W11602621 | Griddle Module Assembly (Replaces: W11505236) |
|
Immediately | $ 1,547.02 | ||||
| 10 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 11 | W10115843 | Cover, Ignition |
|
- | |||||
| 12 | ARIDBAA9548A1EB15B27ADE369B6B57A1AD | Box, Burner (not Serviced) |
|
- | |||||
| 13 | W11319618 | Sensor, Griddle (Replaces: W10891584) |
|
$ 228.48 | |||||
| 14 | W10162096 | Screw |
|
$ 21.90 | |||||
| 15 | W11319228 | Insulation, Griddle (Replaces: W11121383) |
|
- | |||||
| 16 | 4453116 | Adapter, Male |
|
$ 179.43 | |||||
| 17 | W10276497 | Tray, Griddle Drip |
|
$ 404.03 | |||||
| 18 | W11319602 | Element, Griddle (Replaces: W10891698) |
|
$ 369.48 | |||||
| 19 | W11602622 | Module, Griddle (Replaces: W11360151) |
|
- | |||||
| W11317789 | Harness, Main (18 In) (Replaces: W11200311) |
|
$ 248.36 | ||||||
| 7101P48560 | Screw, Anti-tip Kit |
|
- | ||||||
| W11317788 | Harness, Cooktop (Replaces: W11200329) |
|
Immediately | $ 206.07 | |||||
| W11317787 | Harness, Griddle (Replaces: W10903727) |
|
$ 116.76 | ||||||
| W11502161 | Kit, Lp Conversion (Replaces: W11238042) |
|
Immediately | $ 79.21 | |||||
| W11200302 | Harness, Main (30 In) |
|
$ 282.31 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARI5176DC7BCD528CAA83FE8E7749EF8817 | (right Center) |
|
- | ||||||
| W11397969 | Tube, Manifold Supply (Replaces: W10892805) |
|
- | ||||||
| ARI96BA0D36FA6A631E80C7BFCE86BF12CD | (left Center) |
|
- | ||||||
| W11397968 | Tube, Manifold Supply (Replaces: W10892804) |
|
- | ||||||
| ARI55C06F183F5209A80F64451115E0C931 | (left) |
|
- | ||||||
| W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 59.88 | ||||||
| ARI801BBA1D4998B070483CB04582924894 | (right Center Front And Right Center Rear) |
|
- | ||||||
| W11378578 | Valve Manifold Assembly (Replaces: W10892994) |
|
Immediately | $ 226.61 | |||||
| ARI57B9553D5837AE96754E7E4FA509D74E | (left Center Front And Left Center Rear) |
|
- | ||||||
| W11381269 | Valve Manifold Assembly (Replaces: W11036612) |
|
$ 344.56 | ||||||
| ARI9507B2260F4F1180177DEA5E15D01986 | (left Front And Left Rear) |
|
- | ||||||
| W11202289 | Sheet, Tech |
|
- | ||||||
| W11565475 | Wiring Diagram (oven) |
|
- | ||||||
| W11508932 | Wiring Diagram (cooktop) |
|
- | ||||||
| W11114332 | Guide, Quick Start |
|
- | ||||||
| W11184759 | Guide, Internet Connectivity |
|
- | ||||||
| 4450800 | Screw, Grounding |
|
$ 13.47 | ||||||
| W11508889 | Installation Instructions |
|
- | ||||||
| W11508897 | Owner's Manual |
|
- | ||||||
| WP9759877 | Retainer, Strain Relief (Replaces: 9759877) |
|
$ 20.21 | ||||||
| W11321066 | Cord, Power (Replaces: W11212216) |
|
$ 118.94 | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| W11317791 | Harness, Wifi (Replaces: W11242785) |
|
$ 113.72 | ||||||
| W11317786 | Harness, Communication (Replaces: W11200318) |
|
Immediately | $ 131.85 | |||||
| W10780278 | Harness, Door Lock |
|
Immediately | $ 95.87 |
