Burner Box And Griddle Parts


Chassis Parts


Cooktop, Burner And Grate Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts

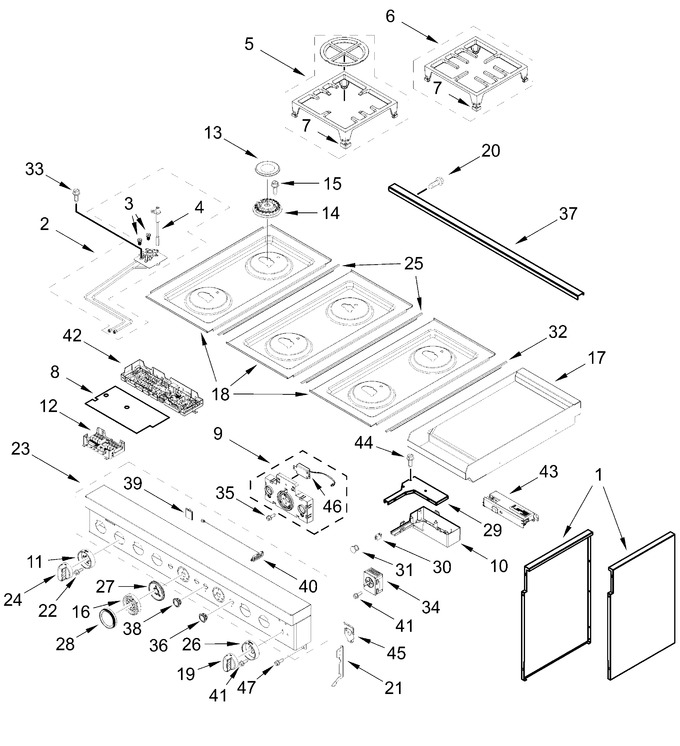

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11321067		Panel, Cabinet Side (left)   (Replaces: W11111429)				$ 439.37
2	W11333305		Orifice Holder Assembly   (Replaces: W10892793)				$ 125.39
3	W11643164		Orifice, Main (17.4k)   (Replaces: W10892422)			Immediately	$ 60.97
4	W11573760		Igniter   (Replaces: W11238757)			Immediately	$ 23.48
5	W11380124		Burner, Grate (with Wok Ring)   (Replaces: W11291183)			Immediately	$ 200.19
6	W11380128		Burner, Grate   (Replaces: W11291179)			Immediately	$ 183.04
7	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11492302		Interface, User   (Replaces: W11436331)			Immediately	$ 399.40
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11380146		Bezel (front Burners)   (Replaces: W10881642)				$ 65.07
12	W11317945		Manager, Appliance (expansion)   (Replaces: W10890116)				$ 453.65
13	W11344538		Cap, Burner (black, Qty Of 6)   (Replaces: W11121390)			Immediately	$ 141.29
14	W11344539		Spreader, Flame (high)   (Replaces: W10891746)			Immediately	$ 141.16
15	W11643628		Screw (8-18 X 1 In)   (Replaces: W11323261)				$ 14.75
16	W11567541		Knob, Oven Mode (stainless)   (Replaces: W11500863)		Appelez-nous	-
17	ARIED961ACF1DFB3262BCF1A3D165D9DAED		Griddle Module Assembly (see Burner Box And Griddle Parts Page)		Appelez-nous	-
18	W11344755		Panel, Left Cooktop (black)   (Replaces: W11038235)				$ 199.76
19	W11392643		Knob, Griddle (stainless)   (Replaces: W10912167)		Appelez-nous	-
20	7101P33860		Screw		Appelez-nous	-
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	W11509770		Screw   (Replaces: W11328357)				$ 14.23
23	W11728205		Panel, Control   (Replaces: W11700786)				$ 987.63
24	W11380561		Knob, Single (stainless)   (Replaces: W10912166)			Immediately	$ 81.20
25	W10271524		Trim, T-strip (black)				$ 212.34
26	W11388057		Bezel, Griddle (stainless)   (Replaces: W10886700)		Appelez-nous	-
27	W11548484		Bezel, Oven (stainless)   (Replaces: W11500871)				$ 61.19
28	W11548477		Knob, Oven Temperature (stainless)   (Replaces: W11500868)				$ 149.89
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W10116114		Light, Indicator Housing			Immediately	$ 93.57
31	W10294500		Lens, Indicator Light				$ 7.69
32	W10291193		Trim, L-strip		Appelez-nous	-
33	7101P42660		Screw		Appelez-nous	-
34	W11318834		Control, Griddle   (Replaces: W11033497)				$ 356.52
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
36	W11241510		Button Assembly, Oven Start			Immediately	$ 48.76
37	W11320157		Trim, Island   (Replaces: W11156418)		Appelez-nous	-
38	W11241511		Button Assembly, Oven Light			Immediately	$ 46.19
39	W10896366		Light Pipe Assembly				$ 108.38
40	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
41	W10674068		Screw				$ 24.39
42	W11398684		Manager, Appliance (powermax)   (Replaces: W11100281)				$ 473.57
43	W11234290		Wifi Module Assembly   (Replaces: W11110768)				$ 179.89
44	7101P62460		Screw		Appelez-nous	-
45	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
46	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
47	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
	W11392645		Panel, Center Cooktop (black)   (Replaces: W11038243)				$ 491.89
	ARI5176DC7BCD528CAA83FE8E7749EF8817		(right Center)		Appelez-nous	-
	W11319743		Orifice Holder Assembly   (Replaces: W10892505)				$ 125.13
	ARI91512E59DD97B6DE955CDC6C52849EDE		(right Center Front)		Appelez-nous	-
	W11398676		Orifice Holder Assembly   (Replaces: W10892446)				$ 123.64
	ARI2DF9F568FCE4D6018097574F1022E13B		(right Center Rear)		Appelez-nous	-
	ARI84ED65FEA174F07BF8F003F72E5F11AC		(left Front, Right Center Front)		Appelez-nous	-
	W11672510		Orifice, Main (15k)   (Replaces: W10892419)			Immediately	$ 107.87
	ARI1D437A95BB9951E88D2C823ABD70D6CC		(left Rear, Left Center Front, Right Center Rear)		Appelez-nous	-
	W11661909		Orifice, Simmer (2.6k)   (Replaces: W10892435)			Immediately	$ 74.14
	W10892438		Orifice, Simmer (5k)				$ 99.86
	W11114379		Igniter			Immediately	$ 66.44
	W11320596		Panel, Cabinet Side (right)   (Replaces: W11111428)				$ 450.31
	W11628654		Igniter   (Replaces: W10892340)			Immediately	$ 54.92
	ARIC0A1423F8DB18A76A62C2589F952DA0B		(left Center Front, Left Center Rear, Right Center Rear)		Appelez-nous	-
	W11380145		Bezel (rear Burners)   (Replaces: W10883433)				$ 65.07
	ARI388199E1FAFAD7011364C49C01EAB452		(left Front, Left Center Rear, Right Center Front)		Appelez-nous	-
	W11380562		Knob, Dual (stainless)   (Replaces: W10883172)				$ 79.24
	W11344742		Spreader, Flame (low)   (Replaces: W10891974)			Immediately	$ 134.12
	W11344746		Spreader, Flame (aux)   (Replaces: W10891978)			Immediately	$ 133.20
	W11678580		Screw (8-18 X 1/2 In)   (Replaces: W11323309)				$ 14.78
	W10130759		Bracket, Moving Console (right)				$ 75.94
	W11344757		Panel, Center Cooktop (black)   (Replaces: W11038257)				$ 199.76
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARI96BA0D36FA6A631E80C7BFCE86BF12CD		(left Center)		Appelez-nous	-
	W11384764		Orifice Holder Assembly   (Replaces: W10892492)				$ 119.91
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	W11398670		Orifice Holder Assembly   (Replaces: W11159461)				$ 117.04
	ARI8C7BF12CCD21B32D58AD00F381DE6E87		(left Center Front)		Appelez-nous	-
	W11398674		Orifice Holder Assembly   (Replaces: W10892808)		Appelez-nous	-
	ARI13639990676F4BCB7E963B79A24869B9		(left Center Rear)		Appelez-nous	-
