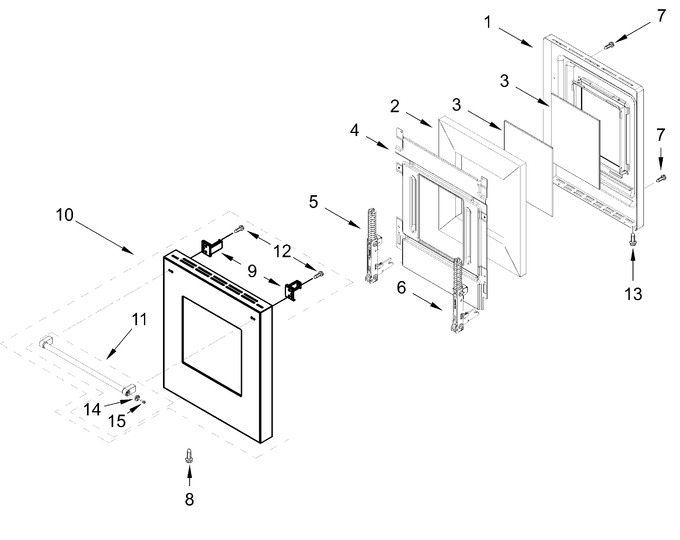

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11318335		Liner, Door   (Replaces: W11036770)				$ 394.33
2	W11317950		Insulation, Door   (Replaces: W10884821)		Appelez-nous	-
3	W11317951		Glass, Inner   (Replaces: W11036789)			Immediately	$ 167.81
4	W11318328		Retainer, Glass   (Replaces: W11194818)				$ 182.64
5	W11643896		Hinge, Door (left)   (Replaces: W11390106)			Immediately	$ 207.50
6	W11643900		Hinge, Door (right)   (Replaces: W11390125)			Immediately	$ 144.95
7	W11712404		Screw   (Replaces: W10898280)			Immediately	$ 14.77
8	W10162096		Screw				$ 21.90
9	W11317513		Bracket, Handle   (Replaces: W11197830)				$ 78.81
10	W11735952		Outer Door Assembly (includes Handle)   (Replaces: W11712118)		Appelez-nous	-
11	W11512758		Handle Assembly   (Replaces: W11362703)		Appelez-nous	-
12	WPW10276043		Screw   (Replaces: W10276043)				$ 7.30
13	W11193480		Screw   (Replaces: W10607120)				$ 14.72
14	W11361074		Medallion, Handle		Appelez-nous	-
15	W10920281		Screw   (Replaces: W10656499)			Immediately	$ 8.95
