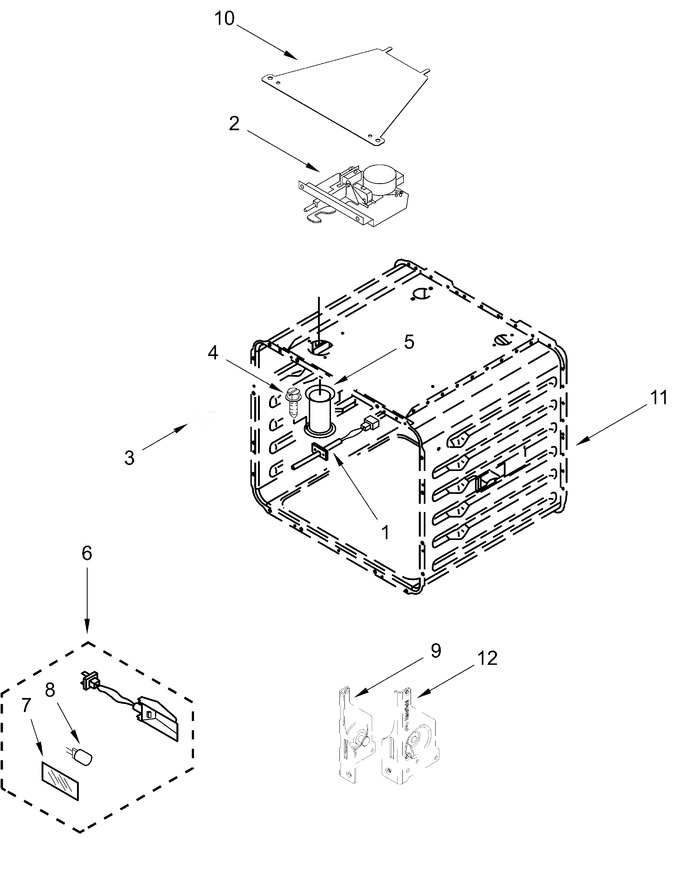

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
2	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 327.65
3	WPW10351278		Bumper And Screw   (Replaces: W10351278)				$ 11.01
4	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
5	W10288078		Tube, Vent				$ 116.85
6	W11233684		Oven Light Assembly   (Replaces: W11223932)				$ 111.33
7	W10169756		Lens, Light				$ 42.19
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
9	W11096294		Receiver, Hinge (not Serviced)		Appelez-nous	-
10	W10160858		Cover, Latch				$ 76.94
11	ARID977495C9905E1411E0312A526DED125		Liner, Oven (not Serviced)		Appelez-nous	-
12	W11096293		Receiver, Hinge (not Serviced)		Appelez-nous	-
	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 8.36
	W11688563		Insulation, Back (18 In)   (Replaces: W11529898)		Appelez-nous	-
	W11688744		Insulation, Wrap (18 In)   (Replaces: W10282820)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
