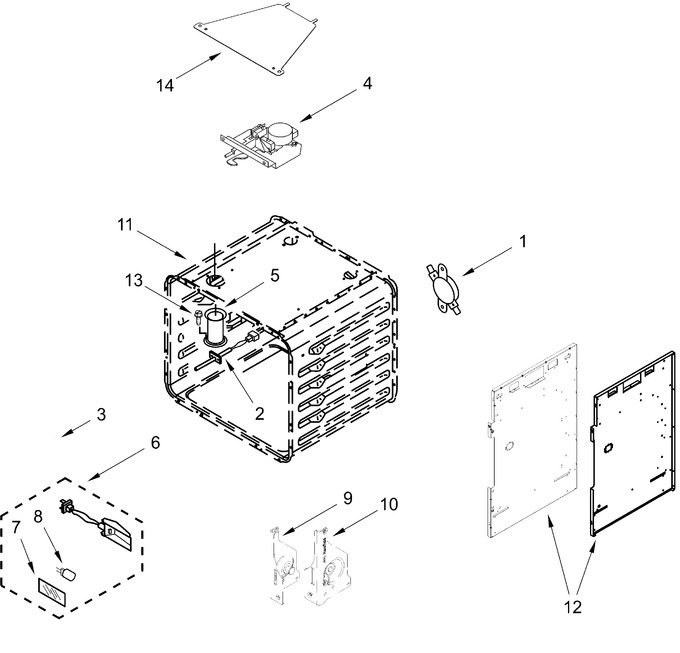

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
2	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
3	WPW10351278		Bumper And Screw   (Replaces: W10351278)				$ 11.01
4	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 327.65
5	W11318343		Tube, Vent   (Replaces: W11290663)				$ 105.43
6	W11233684		Oven Light Assembly   (Replaces: W11223932)				$ 111.33
7	W10169756		Lens, Light				$ 42.19
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
9	W11096294		Receiver, Hinge (not Serviced)		Appelez-nous	-
10	W11096293		Receiver, Hinge (not Serviced)		Appelez-nous	-
11	ARID977495C9905E1411E0312A526DED125		Liner, Oven (not Serviced)		Appelez-nous	-
12	W11750310		Retainer, Left Side Chassis   (Replaces: W11683297)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
14	W10160858		Cover, Latch				$ 76.94
	W11750312		Retainer, Right Side Chassis   (Replaces: W11683296)		Appelez-nous	-
	W11553224		Insulation, Back, (30 In)   (Replaces: W10282818)				$ 107.63
	W11661177		Insulation, Wrap (30 In)   (Replaces: W10282810)				$ 162.50
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 8.36

    View Diagram in Separate Window       Print Part List
