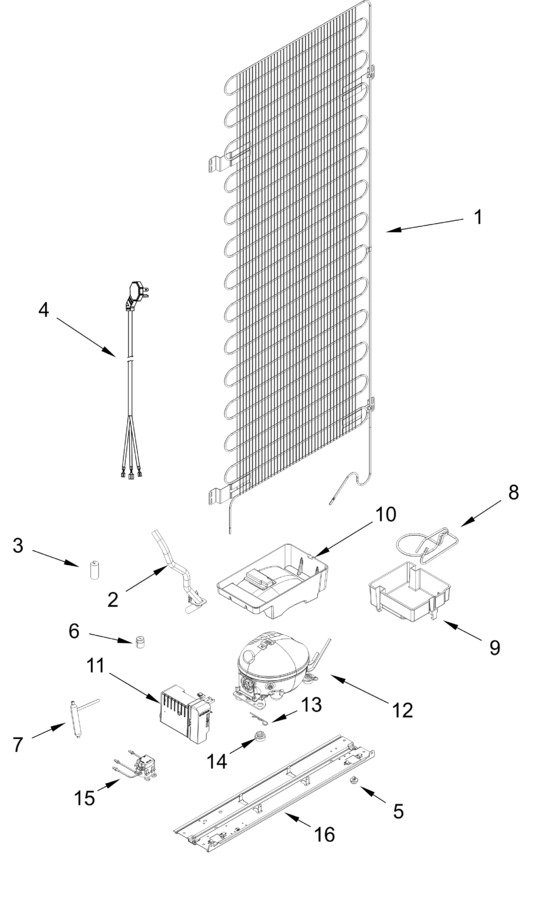

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11757258		Condenser   (Replaces: W11756010)		Appelez-nous	-
2	W11757271		Tube, Condensate   (Replaces: W11756014)		Appelez-nous	-
3	W11757075		Damper, Condenser   (Replaces: W11207589)		Appelez-nous	-
4	W11531505		Power Cord		Appelez-nous	-
5	W10443535		Foot, Rear			Immediately	$ 7.70
6	W11757080		Valve, Drain   (Replaces: W11755990)				$ 25.57
7	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 35.21
8	W11757280		Pipe, Precondenser   (Replaces: W11756328)		Appelez-nous	-
9	W11757118		Tray, Water   (Replaces: W10757321)		Appelez-nous	-
10	W11757078		Tray   (Replaces: W11755874)		Appelez-nous	-
11	W11757119		Inverter   (Replaces: W11755997)		Appelez-nous	-
12	W11757077		Compressor   (Replaces: W11755868)			Immediately	$ 604.79
13	W11023659		Pin, Cotter		Appelez-nous	-
14	W11757117		Grommet   (Replaces: W11755994)		Appelez-nous	-
15	W11757151		Valve   (Replaces: W11756002)			Immediately	$ 111.07
16	W11757074		Crossbar, Rear   (Replaces: W11757073)		Appelez-nous	-
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
	ARI83968ED1216B21CF054D7139FF2AE4C4		40 Grams (r-600a)		Appelez-nous	-
