View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Cabinet Parts
Freezer Door Parts
Freezer Shelf Parts
Liner Parts
Refrigerator Door Parts
Refrigerator Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:

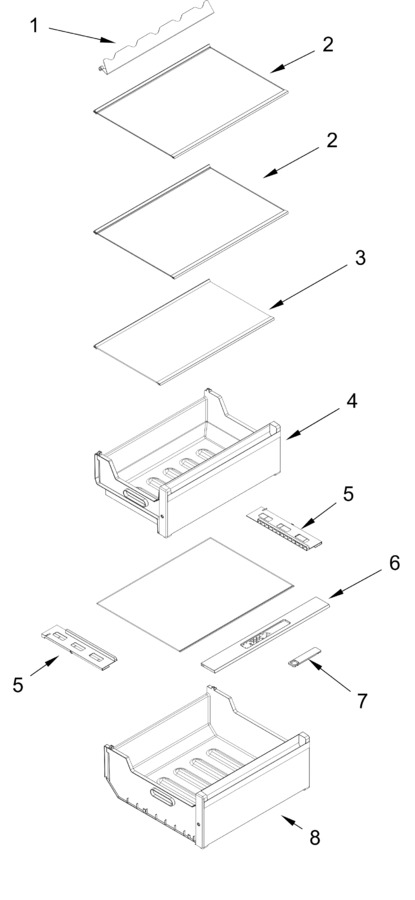

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11676359 | Holder, Bottle (Replaces: W11288004) |
|
$ 300.17 | |||||
| 2 | W11757025 | Assembly, Glass Shelf (Replaces: W10667587) |
|
- | |||||
| 3 | W11757026 | Assembly, Glass Shelf (Replaces: W11393575) |
|
- | |||||
| 4 | W11756930 | Assembly, Drawer (Replaces: W11755857) |
|
$ 162.95 | |||||
| 5 | W10728747 | Slide (left Hand) |
|
$ 210.66 | |||||
| 6 | W11757030 | Frame, Humidity (Replaces: W11367848) |
|
- | |||||
| 7 | W11757029 | Control, Humidity (Replaces: W11342779) |
|
- | |||||
| 8 | W11756927 | Assembly, Crisper (Replaces: W11755855) |
|
$ 291.74 | |||||
| W10728749 | Slide (right Hand) |
|
$ 210.66 |
