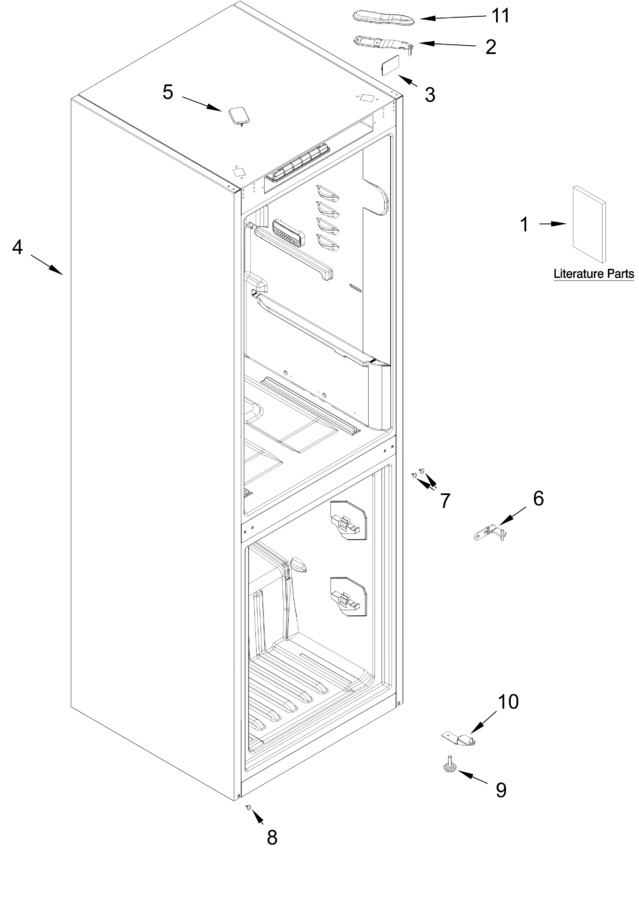

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W10731172 | Hinge, Upper |
|
$ 73.26 | |||||
| 3 | W10747036 | Filler, Left Corner (grey) |
|
Immediately | $ 91.95 | ||||
| 4 | ARI94342C74144DD1D8059B1C42D7D53A15 | Cabinet (not A Servicable Part) |
|
- | |||||
| 5 | W10747990 | Cover, Connector (grey) |
|
Immediately | $ 92.36 | ||||
| 6 | W10737284 | Hinge, Center |
|
Immediately | $ 71.45 | ||||
| 7 | W11767622 | Plug, Hinge Hole (white) (Replaces: W11475113) |
|
Immediately | $ 9.74 | ||||
| 8 | W11469992 | Plug, Hinge Hole (grey) |
|
- | |||||
| 9 | W10843037 | Leveler, Foot |
|
Immediately | $ 17.72 | ||||
| 10 | W10720304 | Hinge, Bottom |
|
$ 73.57 | |||||
| 11 | W10746882 | Cover, Upper Hinge (grey) |
|
$ 17.45 | |||||
| W11757076 | Filler, Right Corner (grey) (Replaces: W11354514) |
|
$ 20.41 | ||||||
| W11710008 | Owners Manual |
|
- | ||||||
| W11710078 | Tech Sheet |
|
- | ||||||
| W11710116 | Energy Guide |
|
- |
